AFX Connectors remain in a Deployed state and Port 8585 already in use error in RSA Identity Governance & Lifecycle
Originally Published: 2015-05-01
Article Number
Applies To
RSA Version/Condition: 6.8.x, 6.9.x, 7.0.x, 7.1.x
Issue
The $AFX_HOME/mmc-console/logs/catalina.out has the following errors in the log file:
Oct 15, 2019 9:58:10 AM org.apache.coyote.AbstractProtocol init SEVERE: Failed to initialize end point associated with ProtocolHandler ["http-bio-8585"] java.net.BindException: Address already in use (Bind failed) <null>:8585 at org.apache.tomcat.util.net.JIoEndpoint.bind(JIoEndpoint.java:413) at org.apache.tomcat.util.net.AbstractEndpoint.init(AbstractEndpoint.java:665) at org.apache.coyote.AbstractProtocol.init(AbstractProtocol.java:452) at org.apache.coyote.http11.AbstractHttp11JsseProtocol.init(AbstractHttp11JsseProtocol.java:119) at org.apache.catalina.connector.Connector.initInternal(Connector.java:978) at org.apache.catalina.util.LifecycleBase.init(LifecycleBase.java:102) at org.apache.catalina.core.StandardService.initInternal(StandardService.java:560) at org.apache.catalina.util.LifecycleBase.init(LifecycleBase.java:102) at org.apache.catalina.core.StandardServer.initInternal(StandardServer.java:840) at org.apache.catalina.util.LifecycleBase.init(LifecycleBase.java:102) at org.apache.catalina.startup.Catalina.load(Catalina.java:642) at org.apache.catalina.startup.Catalina.load(Catalina.java:667) at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method) at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62) at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) at java.lang.reflect.Method.invoke(Method.java:498) at org.apache.catalina.startup.Bootstrap.load(Bootstrap.java:253) at org.apache.catalina.startup.Bootstrap.main(Bootstrap.java:427) Caused by: java.net.BindException: Address already in use (Bind failed) at java.net.PlainSocketImpl.socketBind(Native Method) at java.net.AbstractPlainSocketImpl.bind(AbstractPlainSocketImpl.java:387) at java.net.ServerSocket.bind(ServerSocket.java:375) at java.net.ServerSocket.<init>(ServerSocket.java:237) at java.net.ServerSocket.<init>(ServerSocket.java:181) at org.apache.tomcat.util.net.DefaultServerSocketFactory.createSocket(DefaultServerSocketFactory.java:49) at org.apache.tomcat.util.net.JIoEndpoint.bind(JIoEndpoint.java:400) ... 17 more Oct 15, 2019 9:58:10 AM org.apache.catalina.core.StandardService initInternal SEVERE: Failed to initialize connector [Connector[HTTP/1.1-8585]] org.apache.catalina.LifecycleException: Failed to initialize component [Connector[HTTP/1.1-8585]] at org.apache.catalina.util.LifecycleBase.init(LifecycleBase.java:107) at org.apache.catalina.core.StandardService.initInternal(StandardService.java:560) at org.apache.catalina.util.LifecycleBase.init(LifecycleBase.java:102) at org.apache.catalina.core.StandardServer.initInternal(StandardServer.java:840) at org.apache.catalina.util.LifecycleBase.init(LifecycleBase.java:102) at org.apache.catalina.startup.Catalina.load(Catalina.java:642) at org.apache.catalina.startup.Catalina.load(Catalina.java:667) at sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method) at sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:62) at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43) at java.lang.reflect.Method.invoke(Method.java:498) at org.apache.catalina.startup.Bootstrap.load(Bootstrap.java:253) at org.apache.catalina.startup.Bootstrap.main(Bootstrap.java:427) Caused by: org.apache.catalina.LifecycleException: Protocol handler initialization failed at org.apache.catalina.connector.Connector.initInternal(Connector.java:980) at org.apache.catalina.util.LifecycleBase.init(LifecycleBase.java:102) ... 12 more Caused by: java.net.BindException: Address already in use (Bind failed) <null>:8585 at org.apache.tomcat.util.net.JIoEndpoint.bind(JIoEndpoint.java:413) at org.apache.tomcat.util.net.AbstractEndpoint.init(AbstractEndpoint.java:665) at org.apache.coyote.AbstractProtocol.init(AbstractProtocol.java:452) at org.apache.coyote.http11.AbstractHttp11JsseProtocol.init(AbstractHttp11JsseProtocol.java:119) at org.apache.catalina.connector.Connector.initInternal(Connector.java:978) ... 13 more Caused by: java.net.BindException: Address already in use (Bind failed) at java.net.PlainSocketImpl.socketBind(Native Method) at java.net.AbstractPlainSocketImpl.bind(AbstractPlainSocketImpl.java:387) at java.net.ServerSocket.bind(ServerSocket.java:375) at java.net.ServerSocket.<init>(ServerSocket.java:237) at java.net.ServerSocket.<init>(ServerSocket.java:181) at org.apache.tomcat.util.net.DefaultServerSocketFactory.createSocket(DefaultServerSocketFactory.java:49) at org.apache.tomcat.util.net.JIoEndpoint.bind(JIoEndpoint.java:400) ... 17 more
The $AFX_HOME/esb/logs/esb.AFX-MAIN.log has multiple errors such as:
2019-10-15 10:00:20.607 [WARN] com.aveksa.afx.server.manager.MMCRequestManagerImpl:95 - Unable get/setup the server id from the MMC request 2019-10-15 10:00:20.608 [WARN] com.aveksa.afx.server.manager.MMCRequestManagerImpl:96 - Retrying MMC connection and server id setup... 2019-10-15 10:00:25.609 [WARN] com.aveksa.afx.server.manager.MMCRequestManagerImpl:99 - Connection request retry attempt #1 of 12 2019-10-15 10:00:25.612 [INFO] org.apache.commons.httpclient.HttpMethodDirector:193 - I/O exception (java.net.ConnectException) caught when processing request: Connection refused (Connection refused) ... 2019-10-15 10:01:20.724 [WARN] com.aveksa.afx.server.manager.MMCRequestManagerImpl:101 - Unable get/setup the server id from the MMC request 2019-10-15 10:01:20.725 [ERROR] com.aveksa.afx.server.manager.MMCRequestManagerImpl:102 - Server Id setup try count exceeded 2019-10-15 10:01:20.725 [ERROR] com.aveksa.afx.server.manager.MMCRequestManagerImpl:103 - Please verify that the MMC console is running and Host & Port in the URL are correct. 2019-10-15 10:01:20.726 [ERROR] com.aveksa.afx.server.manager.MMCRequestManagerImpl:82 - Unable to initialize the MMC Request Manager com.aveksa.afx.server.manager.MMCException: Unable to retrieve and setup the Afx server Id information ... 2019-10-15 10:01:20.916 [ERROR] com.aveksa.afx.server.manager.MMCRequestManagerImpl:136 - Unable to get status for all Connectors from MMC com.aveksa.afx.server.manager.MMCException: Failed to get flows for server. No associated server Id. Check Request Manager Initialization
Cause
java.net.BindException: Address already in use (Bind failed) <null>:8585

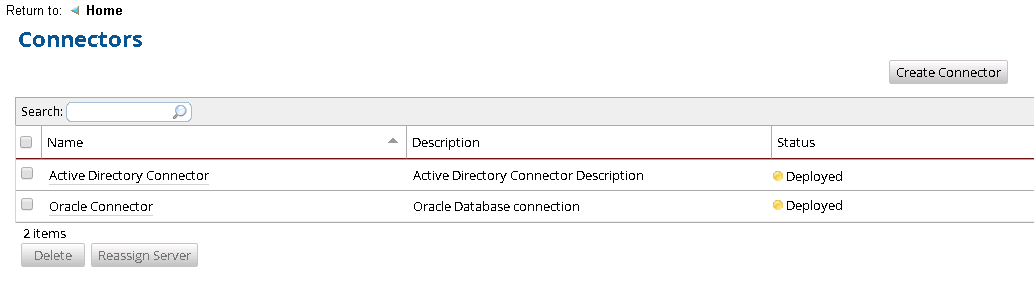

The MMC collects connector information in order for the connectors to run. If the MMC application fails to start, then the connector information is never collected and the connectors cannot move from Deployed to Running.
Resolution
- To check what application is using port 8585, as the root user, execute the following:
netstat tulpn | grep 8585
- Configure the application identified in step 1 to use a different port.
We've seen this situation on Weblogic deployments when the NodeManager is configured to listen on port 8585. Configure NodeManager to list on a different port such as 8586. Please contact your Weblogic Administrator for information on how to modify the NodeManager configuration.
