AFX Server remains in a 'Not running' State with 'An issue with handling encryption was encountered' error on startup in RSA Identity Governance & Lifecycle
4 years ago
Originally Published: 2017-02-08
Article Number
000040170
Applies To
RSA Product Set: RSA Identity Governance & Lifecycle
RSA Version/Condition: 7.0.1, 7.0.2, 7.1.x

Issue

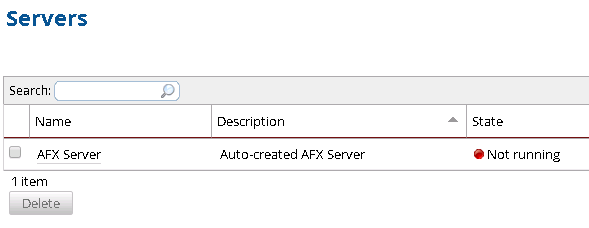

The AFX Server in RSA Identity Governance & Lifecycle remains in a Not running State in the user interface (AFX > Servers).
User-added image

When starting AFX, the following errors are logged to the AFX log files:

/home/{afxuser}/AFX/esb/logs/esb.AFX-INIT.log:
2017-02-02 09:13:06.707 [INFO] org.mule.lifecycle.AbstractLifecycleManager:193 - Starting: 'connector.https.mule.default.dispatcher.697427580'.
Object is: HttpsClientMessageDispatcher
2017-02-02 09:13:06.948 [INFO] com.aveksa.afx.server.init.SubmitInitializationRequestComponent:150 - Initialization response received
2017-02-02 09:13:06.951 [INFO] com.aveksa.afx.server.init.InitializationResponseProcessorComponent:37 - Processing initialization response
2017-02-02 09:13:06.975 [ERROR] com.aveksa.afx.server.init.InitializationResponseProcessorComponent:103 - Error processing initialization response
java.lang.IllegalStateException: An issue with handling encryption was encountered
	at com.aveksa.common.crypto.EncryptionMgr.decrypt(EncryptionMgr.java:501)
.....

Caused by: com.aveksa.common.crypto.EncryptionException: Value to be decrypted has no associated encryptor for its embedded key version:
keyVersion[qG7]; Value[ENCAqG7(hvZ...)]
 -- Check that the security key file is not missing
	at com.aveksa.common.crypto.EncryptionMgr.decrypt(EncryptionMgr.java:495)
	... 53 more


/home/{faxuser}/AFX/esb/logs/mule_ee.log:

ERROR 2017-02-02 09:13:07,030 [WrapperListener_start_runner] org.mule.module.launcher.DefaultArchiveDeployer:
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
+ Failed to deploy artifact '10_AFX-INIT', see below       +
++++++++++++++++++++++++++++++++++++++++++++++++++++++++++++
org.mule.module.launcher.DeploymentInitException: EncryptionException: Value to be decrypted has no associated encryptor
for its embedded key version: keyVersion[qG7]; Value[ENCAqG7(hvZ...)]
 -- Check that the security key file is not missing
Cause
This issue may occur if the encrypted configuration data for the AFX Server is encrypted with a different key than the system-wide encryption keys stored in /home/oracle/security. This may occur for a variety of reasons, including the following examples:
  • The database has been restored from a different system with different encryption keys.
  • One node in a multi-node cluster is incorrectly using different encryption keys than the SON node.
  • The AFX Server Archive has been exported from a different system than it was deployed on.
All passwords in the AFX configuration, including the default truststore password, are encrypted with the system encryption keys. If the keys do not match any encrypted data in the AFX configuration including the connector definitions, the errors will be generated.

The system-wide encryption keys were introduced in 7.0.1 and later versions.

Resolution
Recover all encryption key files from the master key storage directory, /home/oracle/security, as per the instructions in the RSA Identity Governance & Lifecycle Database Setup and Management Guide for your version.
Workaround
If you elect not to recover the Encryption Key from the master key storage directory, then the AFX startup failure can be resolved by re-encrypting the AFX Default Truststore Password.

Under the AFX > Servers menu,
  1. Select the AFX Server instance that has failed.

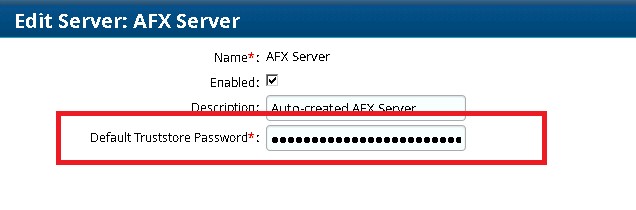

  2. Edit the AFX Server and navigate to the Default Truststore Password field.
  3. Enter the password changeit and save the changes.
User-added image
  1. Restart the AFX Server from the command line as the afx user.
afx restart

This will ensure that the Default TrustStore is encrypted with the current keys.


NOTE:
If you have imported any AFX connectors from another system, you will have to edit each of the connectors and update any encrypted fields (passwords) by re-entering the password and saving the connector definition.
