Detailed report of memory utilization on Linux for RSA Authentication Manager 8.x
Originally Published: 2015-08-28
Article Number
Applies To
RSA Product/Service Type: Authentication Manager
RSA Version/Condition: 8.x
Issue
- Some processes cause memory leak.
- Degraded performance due to lack of memory.
- Degraded performance because memory is drained by one major parent process.
To successfully run the script, you must have Python 2.x or later.
Tasks
- Copy the serv_mon.sh file attached to this article to the server using scp.
- Launch an SSH client, such as PuTTY.
- Login to the RSA Authentication Manager server as rsaadmin and enter the operating system password.
Note that during Quick Setup another user name may have been selected. Use that user name to login.
- Change to the root user.
login as: rsaadmin Using keyboard-interactive authentication. Password: <enter operating system password> Last login: Mon Feb 12 15:51:57 2018 from jumphost.vcloud.local RSA Authentication Manager Installation Directory: /opt/rsa/am rsaadmin@am82p:~> sudo su - root rsaadmin's password: <enter operating system password> am82p:~ #
- Change permissions on the shell script:
am82p:~ # chmod +x serv_mon.sh
- Run the shell script:
am82p:~ # ./serv_mon.sh
Notes

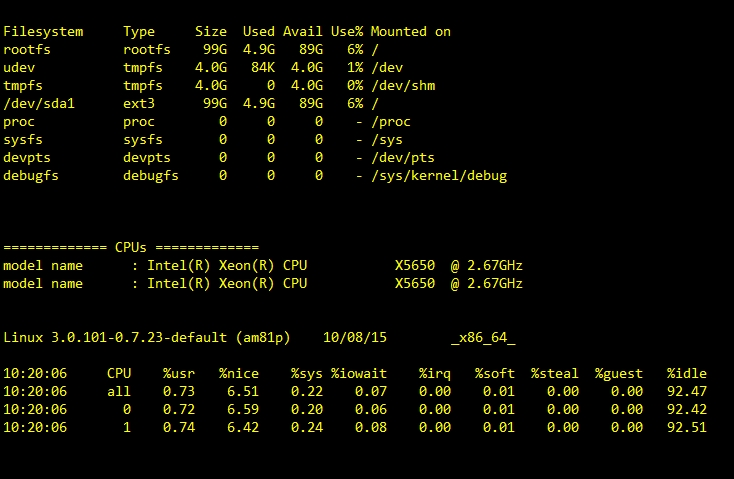

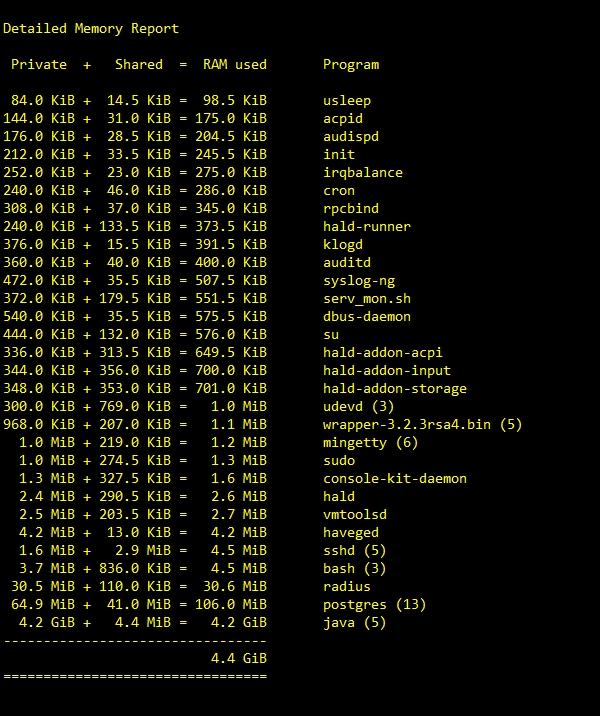

- This script prints a human readable table with the collective memory utilization for each parent process separately.
- It shows information about CPU, CPU utilization.

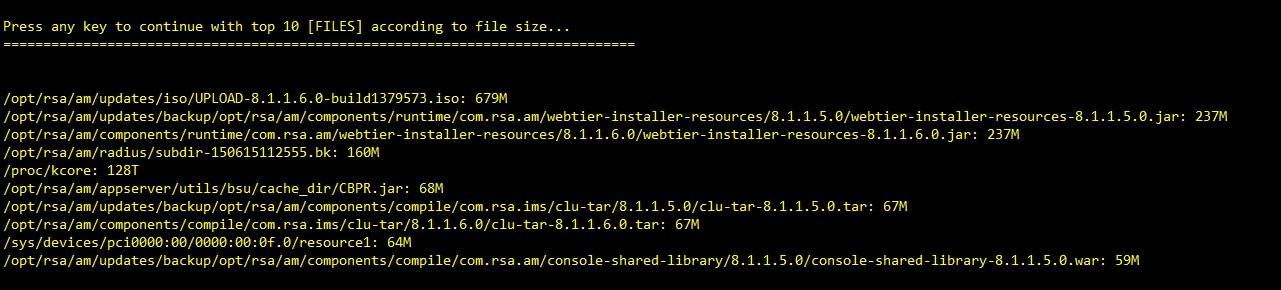

- It shows disk space usage for each partition and the largest ten files on the system.

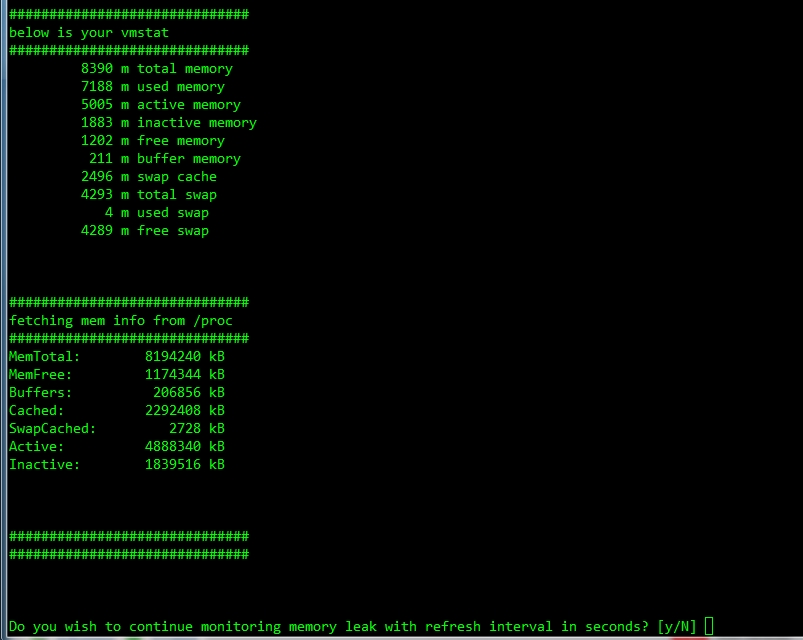

- It collects /proc/meminfo.
- It collects vmstat.

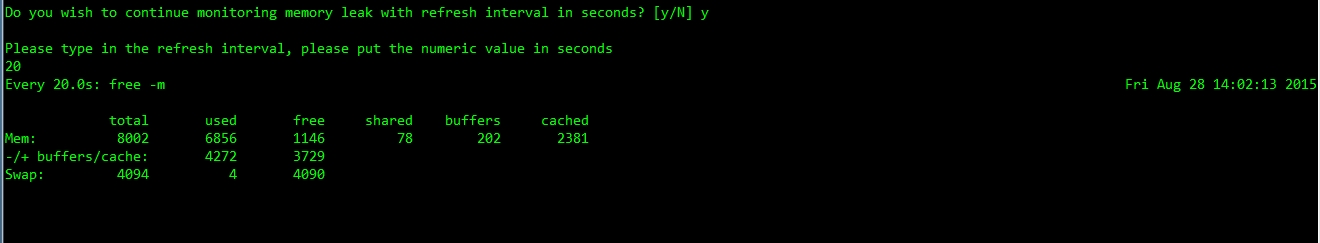

- It watches free –m according to a user specified time interval.
- You need to run this script as root.
Attachments
If the attachment does not open when clicked, please refresh the page and try again. You must be logged into view the file(s).
