Documo - SAML SSO Agent Configuration - RSA Ready SecurID Access Implementation Guide

This section describes how to integrate RSA SecurID Access with Documo using a SAML SSO Agent.

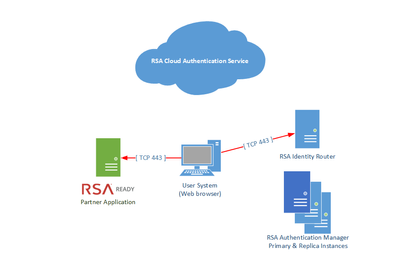

Architecture Diagram

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service(CAS) as an SSO Agent SAML IdP to Documo.

Procedure

1. Sign into the RSA Cloud Administration Console and browse to Applications > Application Catalog.

2. Click on Create From Template found in he upper right of the page then select SAML Direct.

3. On Basic Information page enter a Name for the application, ie. Documo Then click on Next Step.

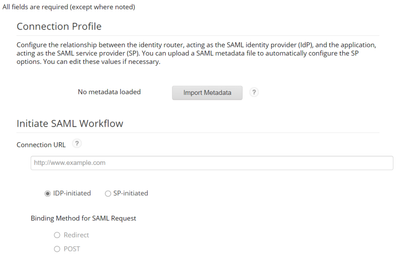

4. On Connection Profile page.

   1. In Connection URL field, verify the default setting.

   2. Choose IDP-Initiated or SP-Initiated.

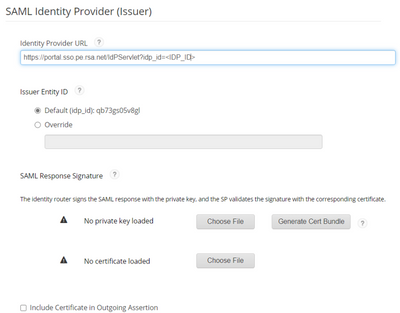

   1. Scroll down to SAML Identity Provider (Issuer) section.

   2. Note the Identity Provider URL and Issuer Entity ID. This values are automatically generated. They may be needed later for the configuration of Documo.

   3. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download .

   4. Select Choose File and upload the private key from the generated certificate bundle.

   5. Select Choose File and upload the cert from the generated certificate bundle.

   6. Select Include Certificate on Outgoing Assertion .

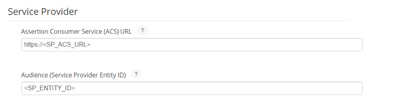

   1. Scroll down to Service Provider section.

   2. Enter the Assertion Consumer Service (ACS) From the Documo configuration below for Assertion Consumer Service. For example: https://api.documo.com/assert.

   3. Enter the Audience (Service Provider Issuer ID) From the Documo configuration below for Entity Descriptor. For example: https://api.documo.com.

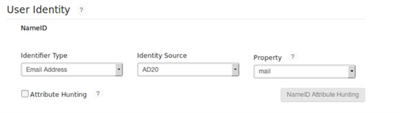

   1. Scroll down to User Identity section .

   2. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail.

   1. Expand Show Advanced Configuration .

   2. In Attribute Extension section click +ADD . Note Property values may vary configurations.

   3. Add Attribute Name = email and Property = mail.

   4. Click Next Step.

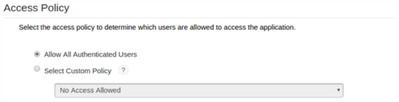

5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step.

1. On Portal Display Page

   1. Select Display in Portal.

   2. Upload an Application Icon if you wish.

   3. Set an Application Tooltip if you wish.

   4. Click on Save and Finish.

2. Browse to Application > My Applications .

3. Locate newly create application for Documo

4. Click on Down Arrow next to Edit button

5. Select Export Metadata data. This will be used below for Documo configuration.

6. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.

Configure Documo

Perform these steps to integrate Documo with RSA SecurID Access as a SAML SSO Agent.

Procedure

1. Sign into Documo and browse to Account Settings > Security.

2. Scroll down to SSO and select Download Metadata.

3. In the Metadata file, locate the values for the Assertion Consumer Service and Entity Descriptor tags. These values will be used for the RSA Cloud Authenitcation Service (CAS) configuration above.

4. For the SSO URL enter the Identity Provider URL from the RSA configuration above. For example, https://portal.sso.per.rsa.net/IdPServlet?idp_id=1cnfrt3e9zckw.

5. For the Entity id enter the Issuer Entity ID from the RSA configuration above. For example, 1cnfrt3e9zckw.
6. For Email domain, enter the email domain for your SSO. For example, mycompany.com.
7. For the Signer Certficate enter the cert.pem file downloaded from the generated certificate bundle in the RSA Cloud Authenitcation Service (CAS) configuration.
8. In the Field Name in the SAML token containing the Identity email, enter email.

1. Click Submit.

Configuration is complete.

See main page for more certification information.
