How to create a network trace for RSA Community issues in Mozilla Firefox
2 years ago
Originally Published: 2017-08-06
Article Number
000063461
Applies To
RSA Product Set: RSA Community (community.rsa.com)
Platform: Mozilla FIrefox
Issue
Occasionally when a user is experiencing a browser issue relating to the RSA Community website, the RSA Customer Support and/or RSA Community teams will ask that user to collect a network trace in the form of a .HAR file so that it can be analyzed.
Tasks
This article walks through the process of performing and saving a network trace using the built-in Developer Tools in the Mozilla Firefox web browser.

(Using the Firebug add-on will not be covered within the scope of this article, but the instructions will be similar.)
Resolution
The steps below explain how to capture a network trace from within the Mozilla Firefox web browser.
  1. Open the Mozilla Firefox web browser and navigate to the specific page that is experiencing the issue.

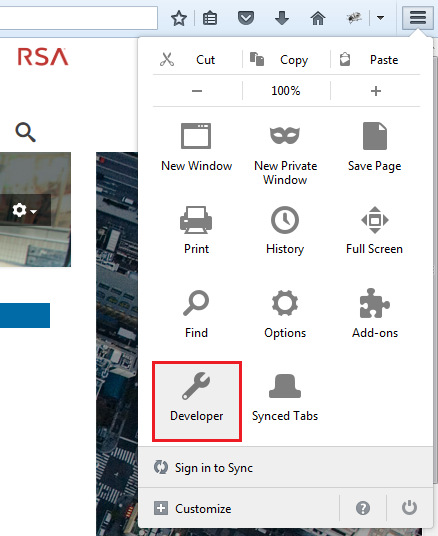

  2. Open the Developer Tools by clicking the Options button in the top-right corner and clicking on the Developer button.
    (The Developer Tools can also be opened by pressing Ctrl+Shift+I in Windows or Option+Command+I in macOS.)
    User-added image

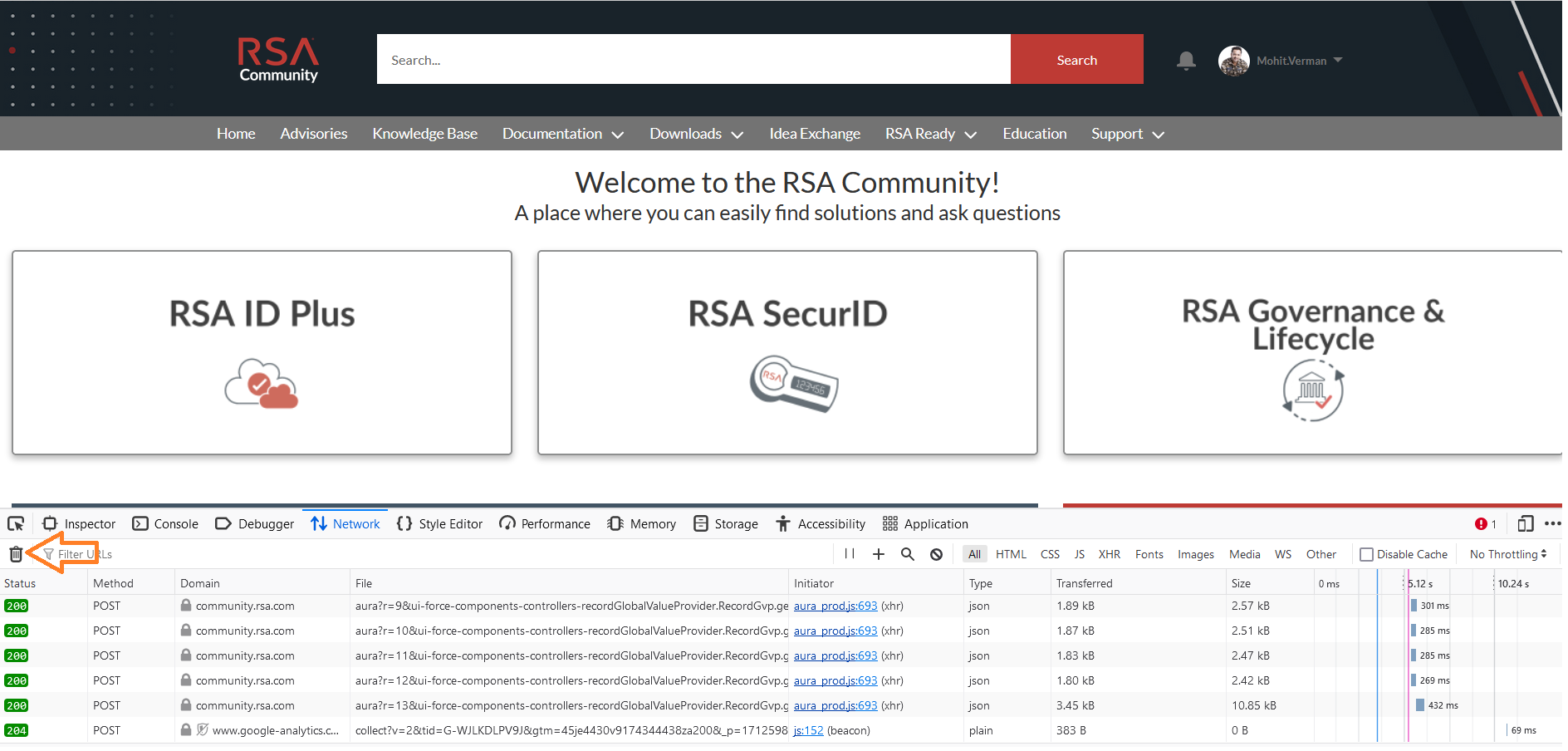

  3. Click on the Network tab within the Developer Tools pane and then click on the Trash Can icon to clear any existing data that has been captured.
  4. Reload the page by pressing F5 or Ctrl+R (or Command+R on macOS), or by clicking on the Refresh icon in the browser toolbar.

  5. Perform any other activity relating to the issue, such as clicking on certain links or buttons, so that the activity can be captured in the trace.

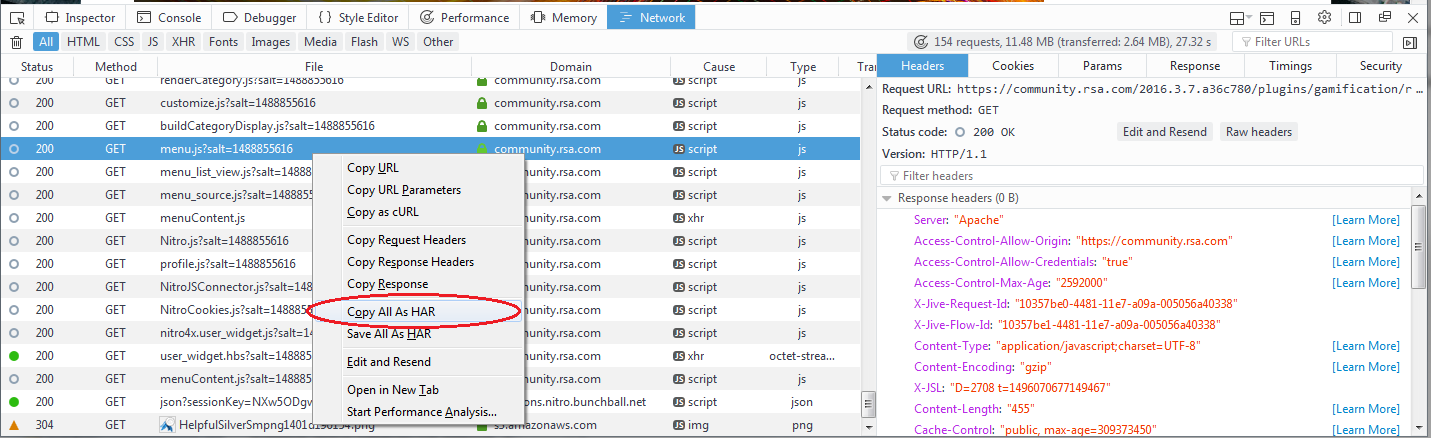

  6. Within the Developer Tool pane, right-click anywhere within the data columns as shown below and then click on the Copy All As HAR option.
    User-added image

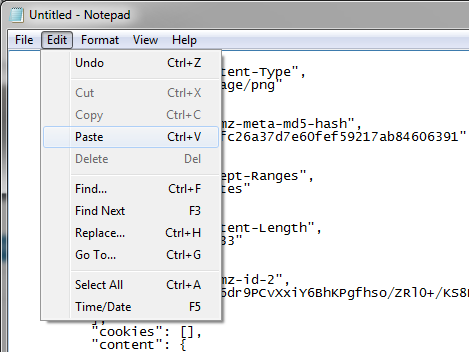

  7. Open a simple text editor (such as Notepad or Notepad++ in Windows or TextWrangler in macOS) and paste the copied data into the application.
    User-added image

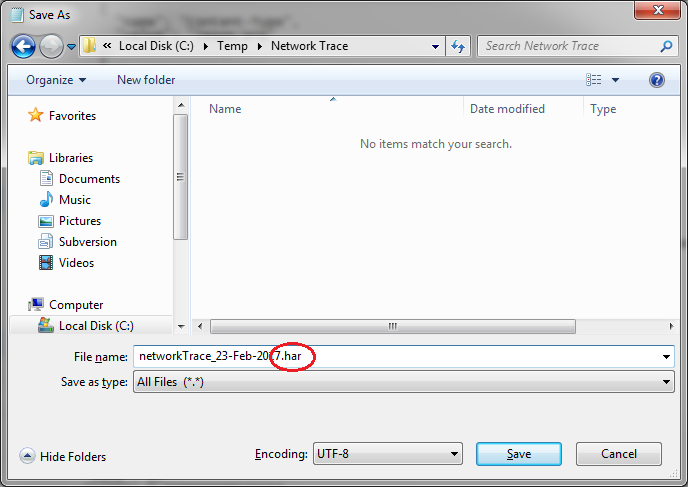

  8. Save the text file with the .har extension.
    User-added image


After saving the file, provide it to RSA Customer Support via the support case for it to be analyzed.
