Increasing the number of connections from RSA Authentication Agent 7.3.x for Windows to a Windows platform with RDP
3 years ago
Originally Published: 2018-03-13
Article Number
000040829
Applies To
RSA Product Set: SecurID
RSA Product/Service Type: Authentication Agent
RSA Version/Condition: 7.3.x
Platform:  Windows
Issue
After 25 challenged users were connected to RDP service on Microsoft Windows 2012 R2, additional users could not connect over RDP.
Cause
This issue is caused by the Offline Authentication service.
Resolution
Override the default configuration for the Offline Service to increase the number of current connections. This can be done by via a SYSTEM environment variable named RSA_DA_API_THREAD_POOL.  Dev has tested with a thread pool of 400.



Workaround

Instructions



  1. Launch the Control Panel on the machine with the Authentication Agent installed.
  2. Navigate to System and Security > System.
  3. Click on Change Settings.
  4. Click on the Advanced tab.
  5. Click on Environment Variables.
  6. Click New.

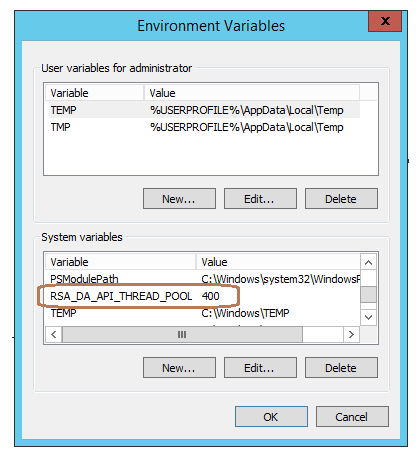

  7. Add the RSA_DA_API_THREAD_POOL variable with a value of 400:

User-added image

  1. When done, click OK.
  2. The new variable will show under System variables.

User-added image
