Originally Published: 2021-11-12



SailPoint Intello - SAML SSO Agent Configuration - SecurID Access Implementation Guide

This section describes how to integrate SecurID Access with SailPoint Intello using a SAML SSO Agent.

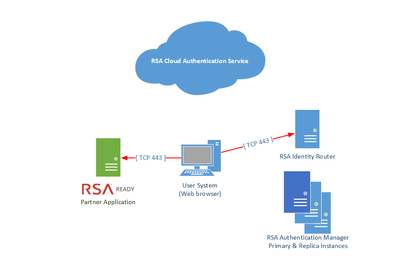

Architecture Diagram




Configure SecurID Access Cloud Authentication Service

Perform these steps to configure SecurID Access Cloud Authentication Service(CAS) as an SSO Agent SAML IdP to Intello.

Procedure

  1. Sign into the SecurID Access Cloud Administration Console and browse to Applications > Application Catalog.

  2. Click on Create From Template then click Select for SAML Direct.

  3. On Basic Information page enter a Name for the application, ie. Intello Then click on Next Step.

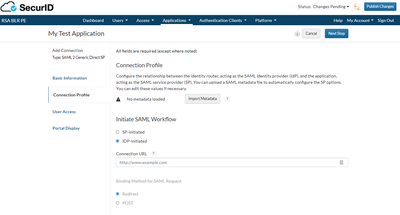

  4. On Connection Profile page.

      1. Choose IDP-Initiated or SP-Initiated.





    1. In Connection URL leave the default if IDP-Inititated, if SP-Initiated set to https://app.intello.io.

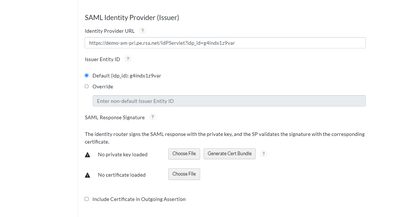

    2. Note the Identity Provider URL and Issuer Entity ID. These values are automatically generated. They may be needed later for the configuration of Intello.




    3. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download .

    4. Select Choose File and upload the private key from the generated certificate bundle.

    5. Select Choose File and upload the cert.pem from the generated certificate bundle.

    6. Select Include Certificate on Outgoing Assertion.

    7. Scroll down to Service Provider section.

    8. For the Assertion Consumer Service (ACS) Enter the value for the Recipient URL found in the Intello configuration. For example, https://gw.intello.io/auth/saml/acs/f9c5c3ab-e5c3-511b-be57-12801mytests.

    9. For the Audience (Service Provider Issuer ID) Enter the value for the Audience URL found in the Intello configuration. For example, https://gw.intello.io/auth/saml/metadata/f9c5c3ab-e5c3-511b-be57-12801mytests.

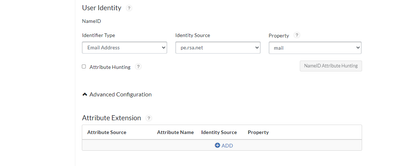

    10. Scroll down to User Identity section.

    11. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail.




    12. Click Next Step.

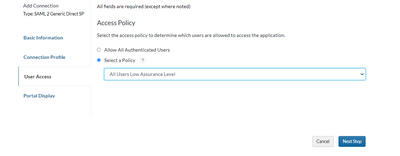

  5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step.




  6. On Portal Display Page.

    1. Select Display in Portal.

    2. Upload an Application Icon if you wish.

    3. Set an Application Tooltip if you wish.

    4. Click on Save and Finish.

  7. For this new Connector, click on the down arrow next to the Edit button and Export Metadata to save off the IDP metadata information for configuration of SailPoint.

  8. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.






Configure SailPoint Intello

Perform these steps to integrate Intello as an SSO Agent SAML SP to SecurID Access Cloud Authentication Service.

Procedure

  1. Sign into Intello and goto Settings > SAML Settings.

  2. Note the Recipient URL and Audience URL values these will be used to configure the SecurID CAS configuration above.

  3. For SignIn URL copy the Identity Provider URL from the above in the SecurID CAS configuration. For example, https://portal.sso.pe.rsa.net/IdPServlet?idp_id=9nfo7bii265b.

  4. For SSO Certificate copy and paste the contents of the certificate saved above in the SecurID CAS configuration. This is the cert.pem from the downloaded certificate bundle from the SecurID Access CAS configuration above.

  5. Click on Add SSO Connection.

Configuration is complete.

Next Step: Head back to the main page.
