Monitoring replication status using SNMP in RSA Authentication Manager 8.x
2 years ago
Originally Published: 2015-11-26
Article Number
000049947
Applies To
RSA Product Set: SecurID
RSA Product/Service Type: Authentication Manager
RSA Version/Condition: 8.x

Issue
Querying SNMP OID .1.3.6.1.4.1.2197.20.21.1.5 (replication status) with a parameter on the RSA Authentication Manager primary works correctly but is not working on the replica instance.

Resolution
SNMP OID .1.3.6.1.4.1.2197.20.21.1.5 is used to query replicationStatus from the path .iso.org.dod.internet.private.enterprises.rsa.ims.instanceTable.instanceEntry.replicationStatus, returning HEALTHY, OUT_OF_SYNC or SYNCHRONIZING responses, depending on the status of the replications.


When an administrator queries the replicationStatus on a primary instance, an additional value or parameter can be added to the OID; for example, SNMP OID .1.3.6.1.4.1.2197.20.21.1.5.0 for the primary instance or SNMP OID .1.3.6.1.4.1.2197.20.21.1.5.1, for the replica instance.


Following is an example of an snmpwalk done on a primary instance:
rsaadmin@app81p:~> snmpwalk -v 3 -u snmpuser -l authPriv -a MD5 -x DES -A "Password01." -X "Password01." 127.0.0.1 .1.3.6.1.4.1.2197.20.21.1.5.0
RFC1155-SMI::enterprises.2197.20.21.1.5.0 = STRING: "HEALTHY"
rsaadmin@app81p:~> snmpwalk -v 3 -u snmpuser -l authPriv -a MD5 -x DES -A "Password01." -X "Password01." 127.0.0.1 .1.3.6.1.4.1.2197.20.21.1.5.1
RFC1155-SMI::enterprises.2197.20.21.1.5.1 = STRING: "HEALTHY"

An administrator would query the replica instance with one OID value to return the value of replicationStatus for example, using SNMP OID .1.3.6.1.4.1.2197.20.21.1.5.0.


Following is an example of an snmpwalk done on a replica instance:
rsaadmin@app81r:~> snmpwalk -v 3 -u snmpuser -l authPriv -a MD5 -x DES -A "Password01." -X "Password01." 127.0.0.1 .1.3.6.1.4.1.2197.20.21.1.5.0
RFC1155-SMI::enterprises.2197.20.21.1.5.0 = STRING: "HEALTHY"


The syntax of the snmpwalk command is
snmpwalk -v 3 -u <Security Name> -l <Security Level> -a <Authentication Protocol> -x <Privacy Protocol> -A <Authentication Password> -X <Privacy Password> <hostname/IP address> <OID value>

The values in the snmpwalk command were configured in the Security Console.

  1. Navigate to Setup > System Settings.
  2. Under Advanced Settings, select Network Monitoring (SNMP).
  3. Select the primary or replica for the Instance Type.
  4. Click Next.

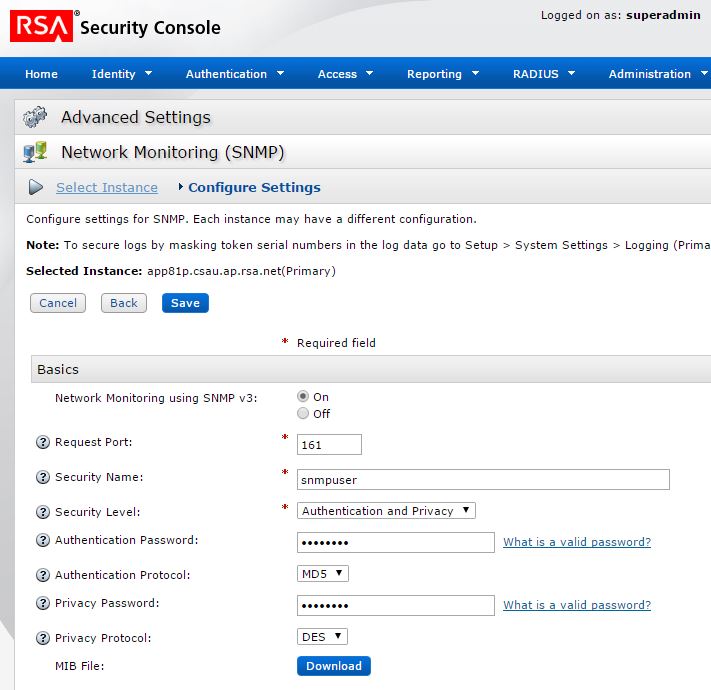

The screen shot below from the Security Console shows where the values for the snmpwalk command can be found:
User-added image
Notes
The snmpwalk commands can be used in scripts or from third party products to monitor replication status where customers can engage RSA Professional Services for this type of assistance.
