Port Traffic for RSA Authentication Manager
2 years ago
Originally Published: 2017-06-13

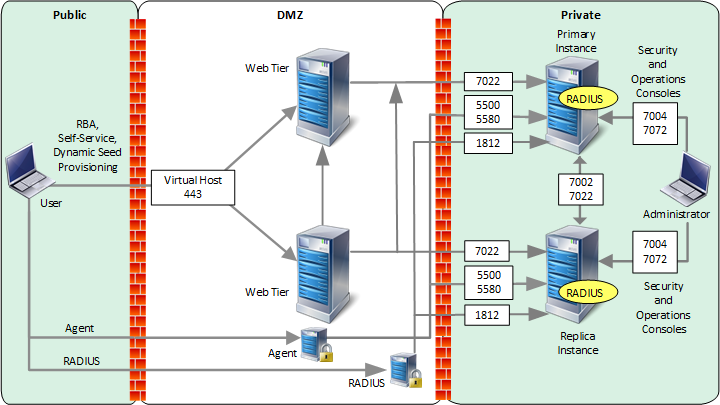

The following figure represents a common RSA Authentication Manager deployment with primary and replica instances, web tiers, and a load balancer. An external firewall protects the primary and replica instances, and another external firewall protects the DMZ. For more information on RADIUS ports, see Ports for the RSA Authentication Manager Instance.

Port traffic diagram for RSA Authentication Manager
