Remote Access VPN Configuration - Cisco FTD RSA Ready SecurID Access Implementation Guide
2 years ago
Originally Published: 2019-01-25

Follow the instruction steps in this section to apply your RADIUS configuration to Cisco FTD Remote Access VPN.



Before you begin: Configure the integration type that your use case will employ. Refer to the Integration Configuration Summary section for more information.

Procedure

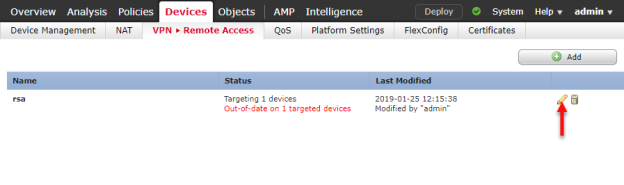

1. Browse to Devices > VPN > Remote Access and click to edit your Remote Access VPN policy.

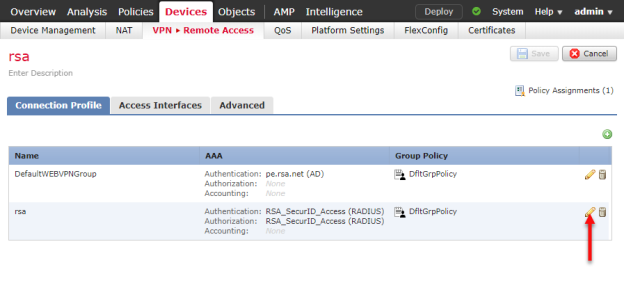

2. Click to Edit the Remote Access VPN Connection profile.

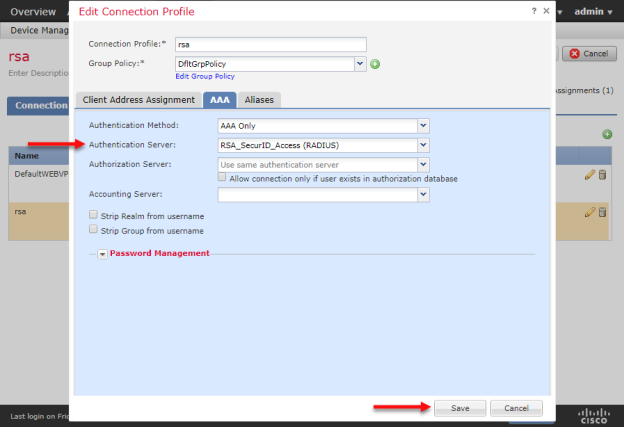

3. Open the AAA tab, set the Authentication Server to the RADIUS AAA server group you configured in the last section and click Save.


4. Click to Save your changes and then click to Deploy the updated configuration to the FTD appliance.


Configuration is complete.

User Experience - RSA Cloud Authentication Service

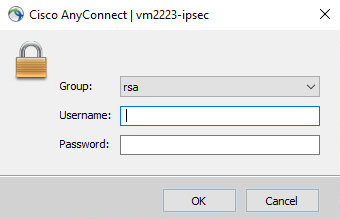

RADIUS - Login Page

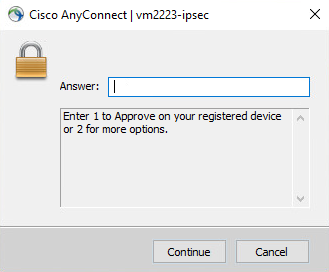

RADIUS - method selection




Head back to the main page for more certification related information.
