This article describes how to integrate RSA with AWS IAM Identity Center using SAML Relying Party.

Configure RSA Cloud Authentication Service

1. Sign in to the RSA Cloud Administration Console.

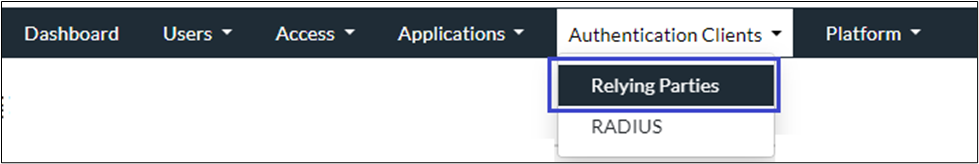

2. Navigate to the Authentication Clients menu, and from the dropdown, select Relying Parties.

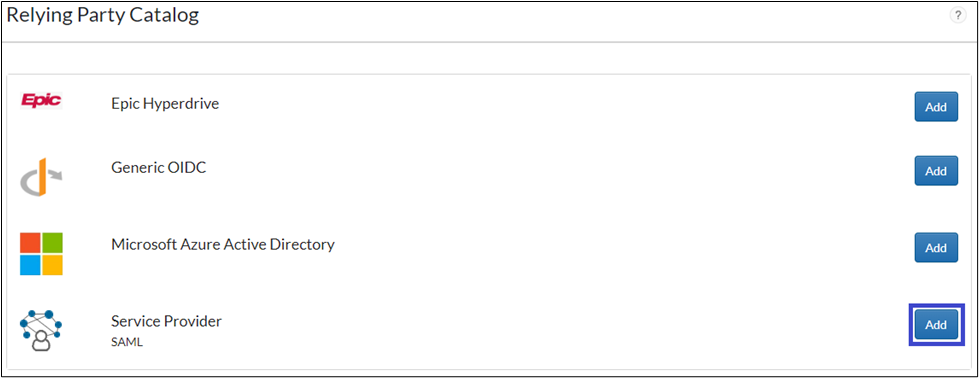

3. In the Relying Party Catalog, select Add a Relying Party and click Add for Service Provider SAML.

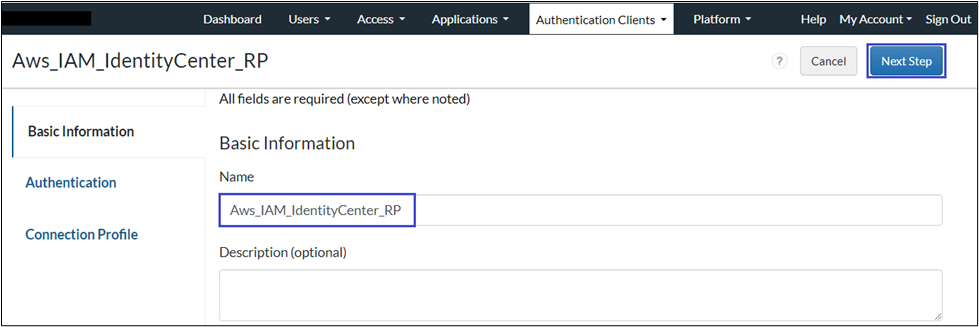

4. On the Basic Information page, enter a name for the application in the Name field and click Next Step.

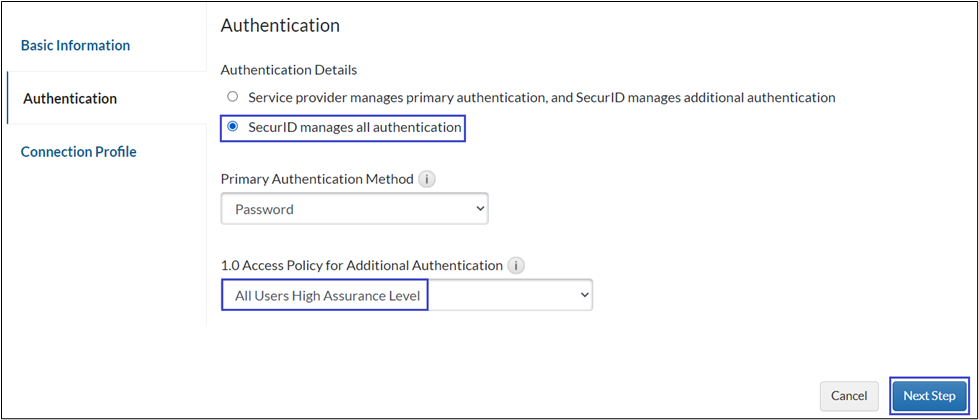

5. In the Authentication tab, select SecurID manages all authentication.
6. Select the Primary Authentication Method and Access Policy for Additional Authentication as required and click Next Step.

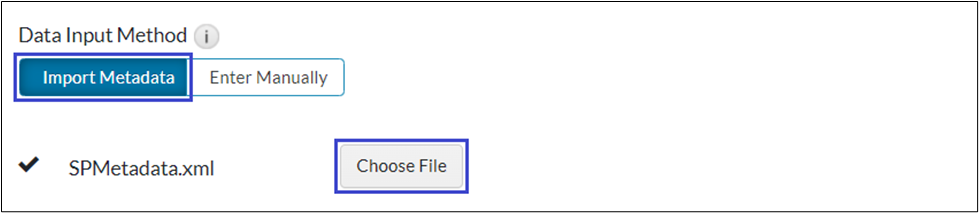

7. To provide Service Provider details, select Import Metadata, click the Choose File button, and select the file downloaded from the Service Provider.

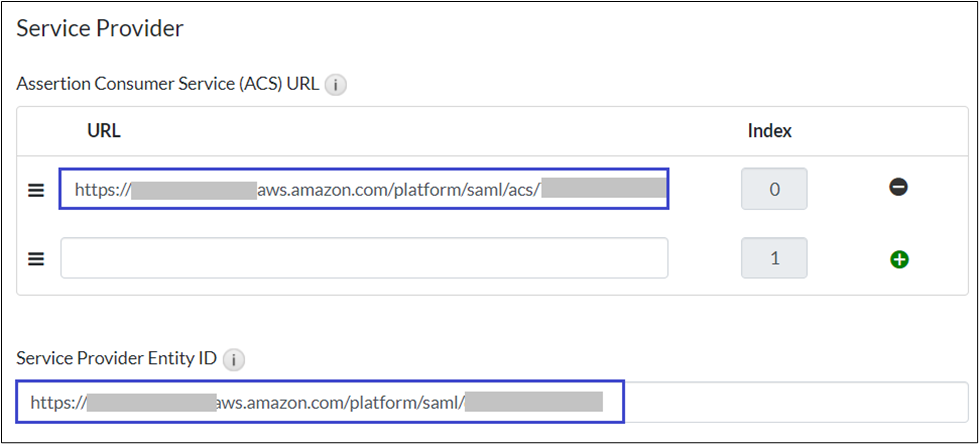

8. Assertion Consumer Service (ACS) URL and Service Provider Entity ID values will be auto filled.

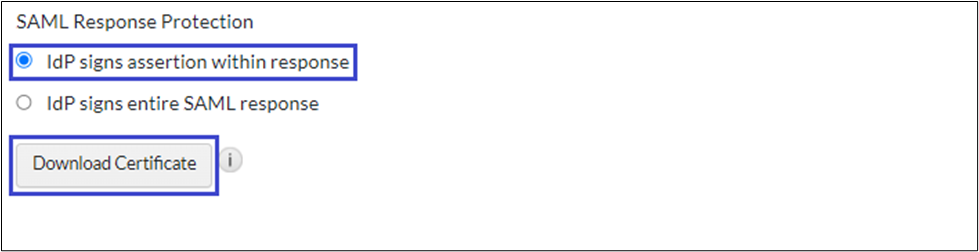

9. In the SAML Response Protection section, select IdP signs assertion within response, and download the certificate by clicking Download Certificate.

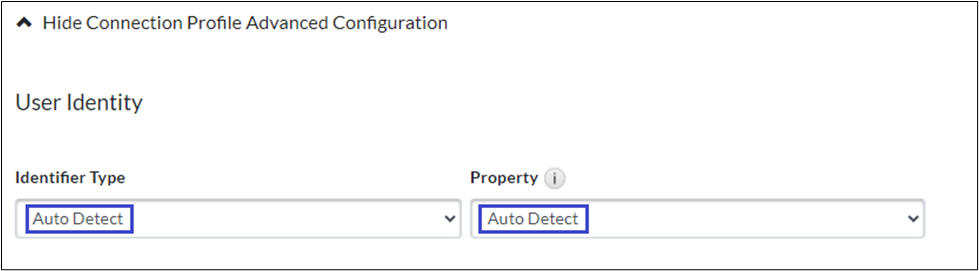

10. Under the User Identity section, select Show Advanced Configuration, then configure Identifier Type and Property as follows:
    1. Identifier Type: Auto Detect
    2. Property: Auto Detect

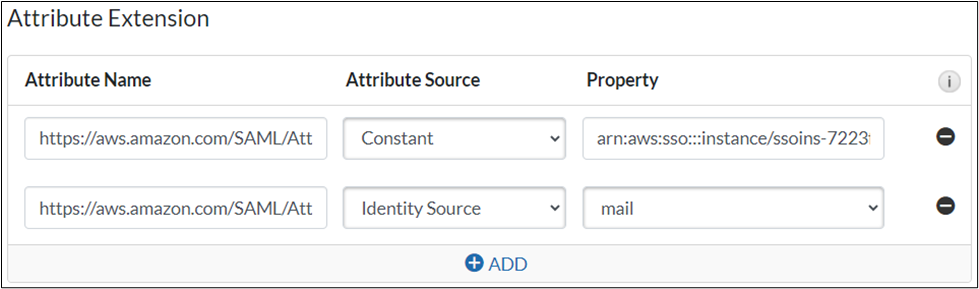

11. Under the Attribute Extension section, add the following attributes:
    1. First Attribute:
       1. Attribute Name: https://aws.amazon.com/SAML/Attributes/Role.
       2. Attribute Source: Constant.
       3. Property: AWS role ARN value, AWS IAM instance session ARN value
    2. Second Attribute:
       1. Attribute Name: https://aws.amazon.com/SAML/Attributes/RoleSessionName.
       2. Attribute Source: Identity Source.
       3. Property: mail.

For example: Combine the Role ARN and the Provider ARN value, separated by a comma, to use as the Property value.
arn:aws:sso:::instance/ssoins-7223fbc530cf9d85,arn:aws:iam::664847341240:role/RSA_Role1
Refer to the AWS IAM Identity Center Configuration section to obtain AWS role ARN value and AWS IAM instance session ARN value.

12. Click Save and Finish.

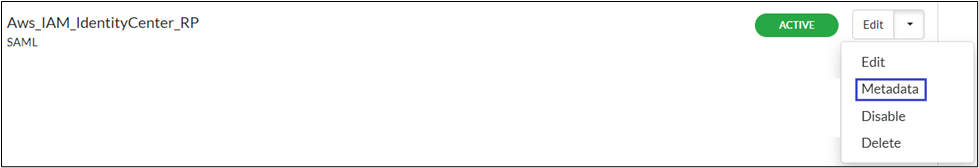

13. On the My Relying Parties page, click Edit dropdown and select Metadata option to download the metadata.

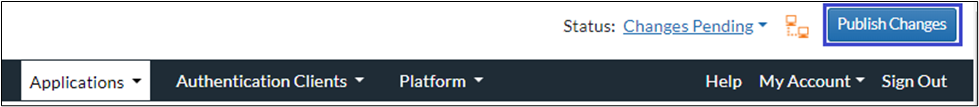

14. Click Publish Changes to save your settings. After publishing, your application will be enabled for SSO.

Configure AWS IAM Identity Center

1. Access the AWS Mangement Console by logging in to your AWS account with admin credentials.

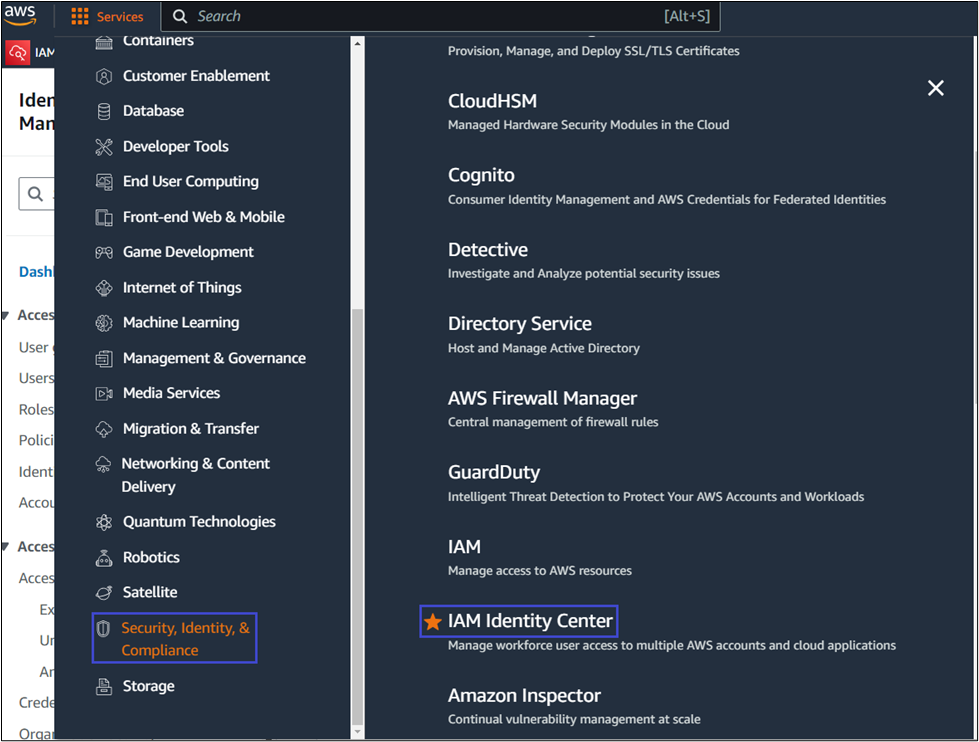

2. Under Services, go to Security, Identity, & Compliance, and select IAM Identity Center.

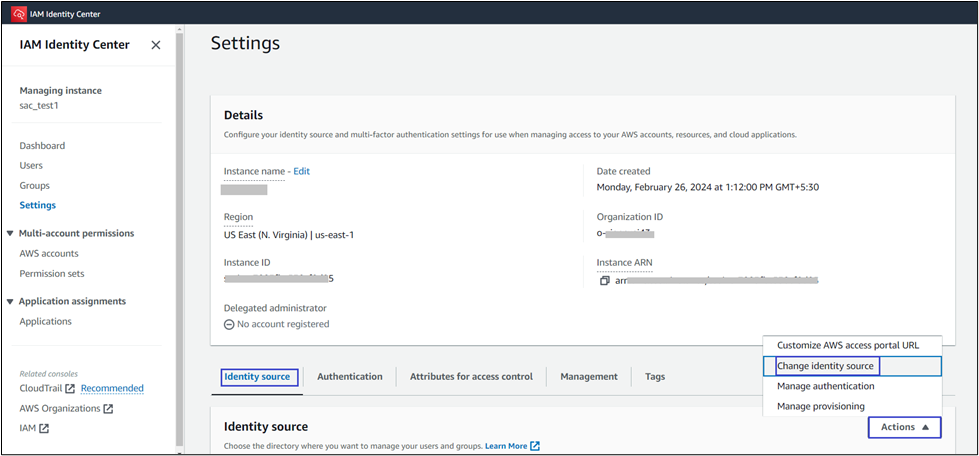

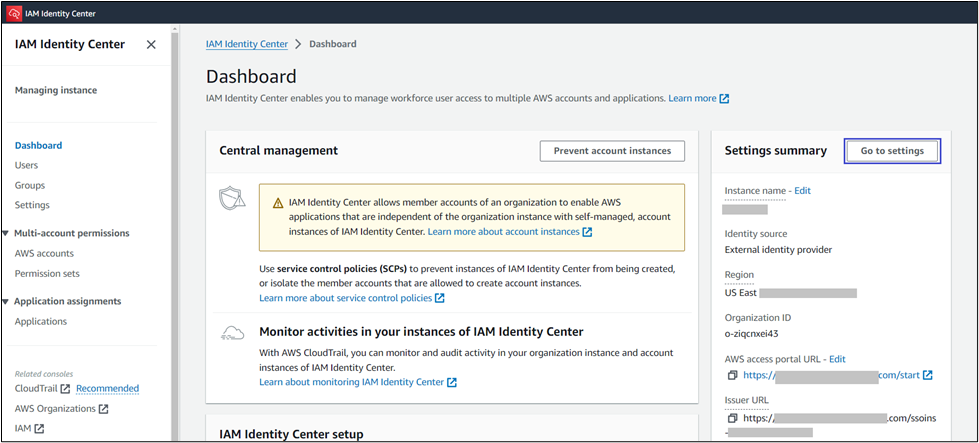

3. Click Go to Settings on the right.

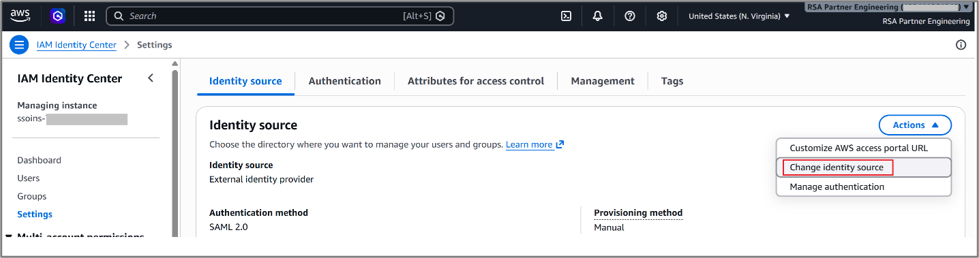

4. Under Identity Source tab, select Change identity source from the Actions dropdown menu.

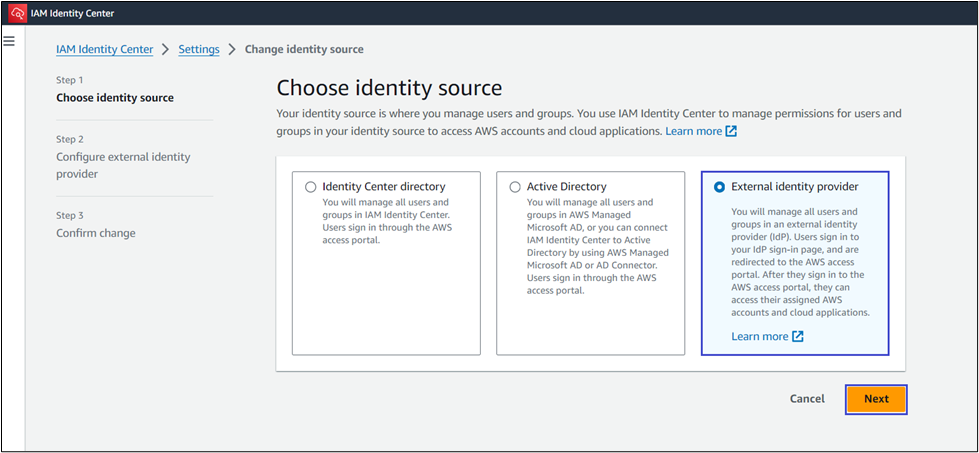

5. Select External identity provider, then click Next.

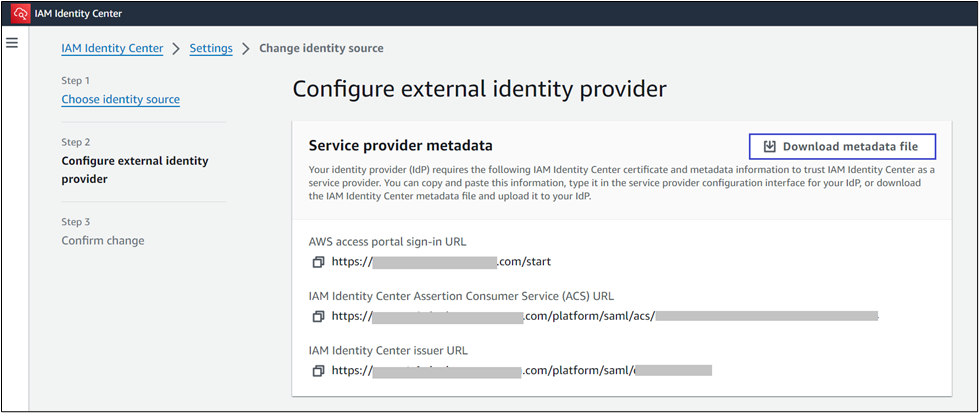

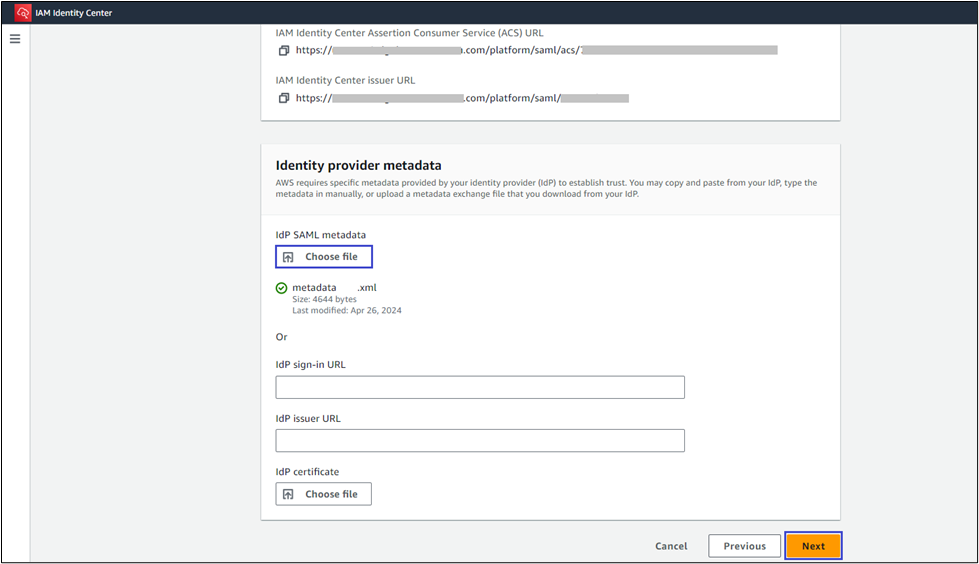

6. Configure the external identity provider and click Next:
   1. Service provider metadata: Click Download metadata file to download the SP metadata.
   2. IdP SAML metadata: Click Choose file and upload the metadata downloaded from the RSA platform.

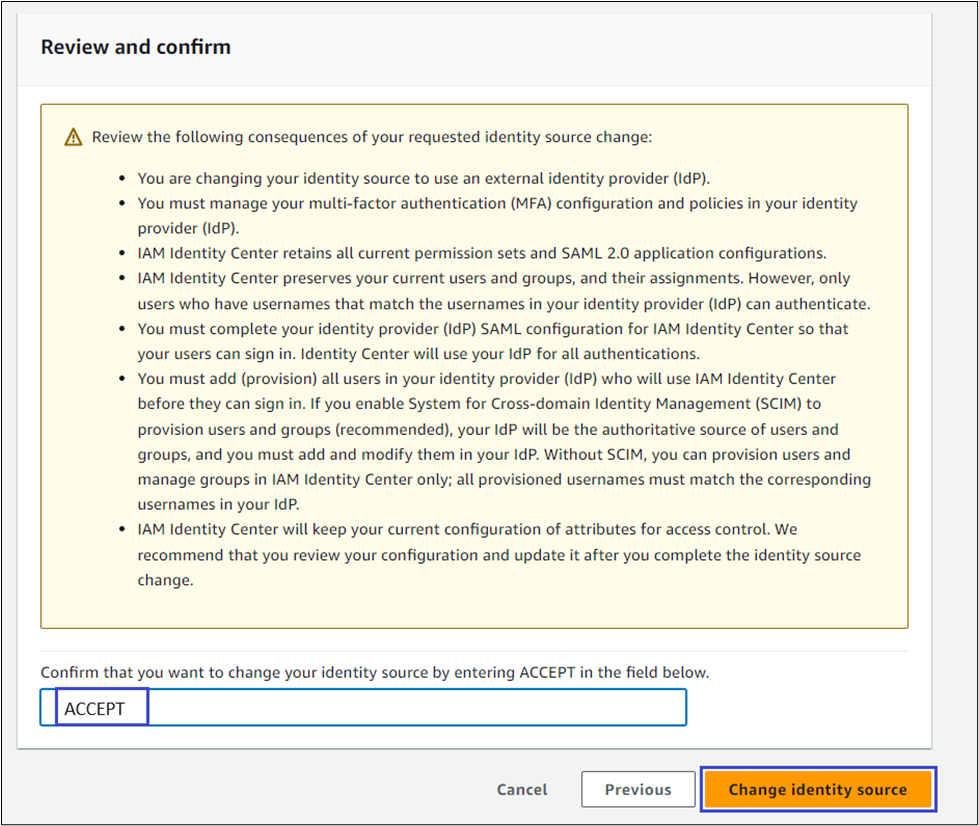

7. Review the list of changes. Once you ready to proceed, type ACCEPT and click Change identity source.

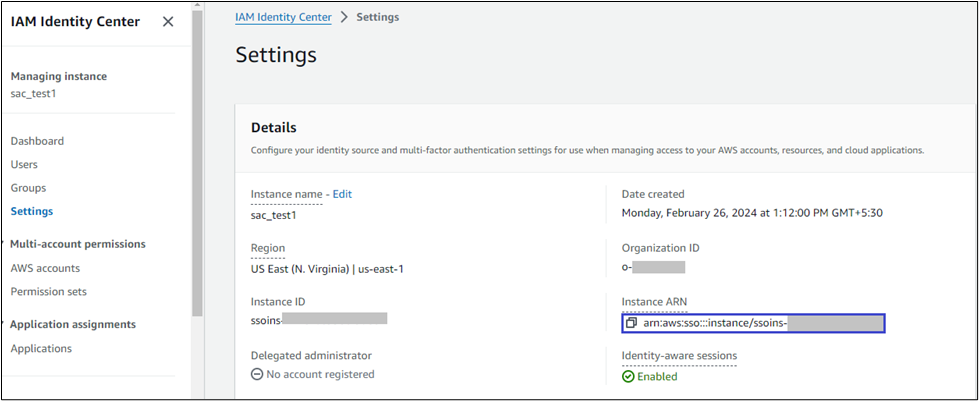

8. Go to Settings and copy the Instance ARN for the RSA configuration.

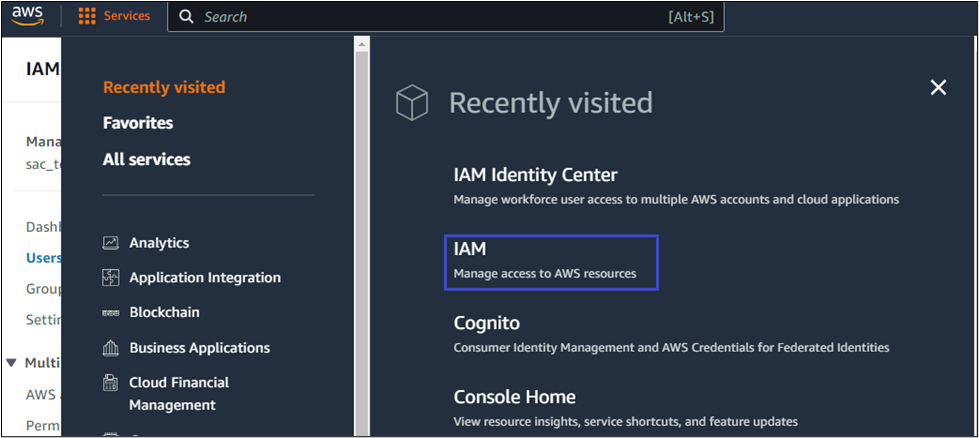

9. To create groups, navigate to AWS IAM.

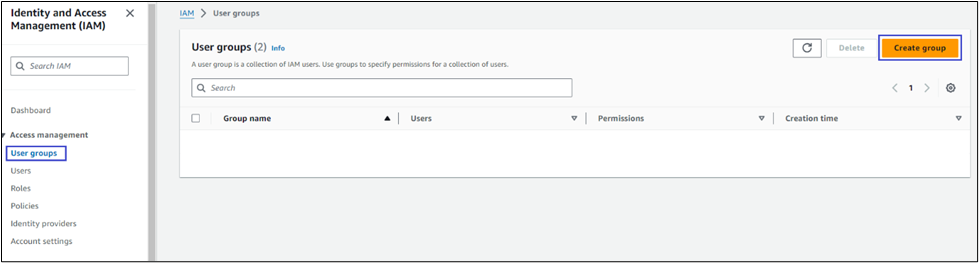

10. Select User groups, then choose Create group.

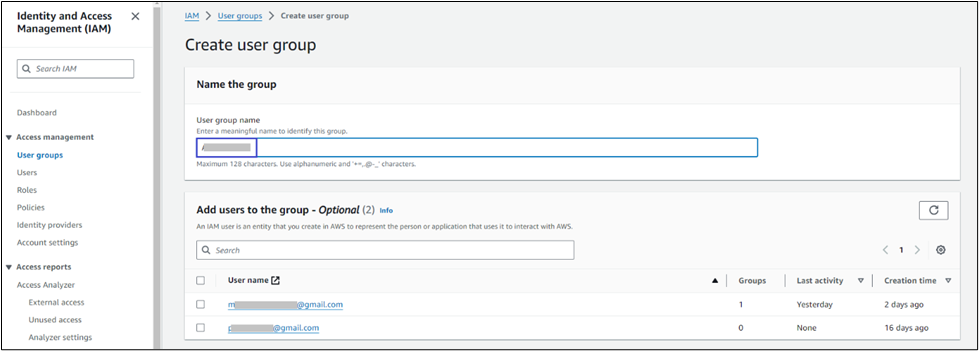

11. Provide the following details, then scroll down and click Create group.
    1. Name the group - In the User group name text box, enter the name of the group.

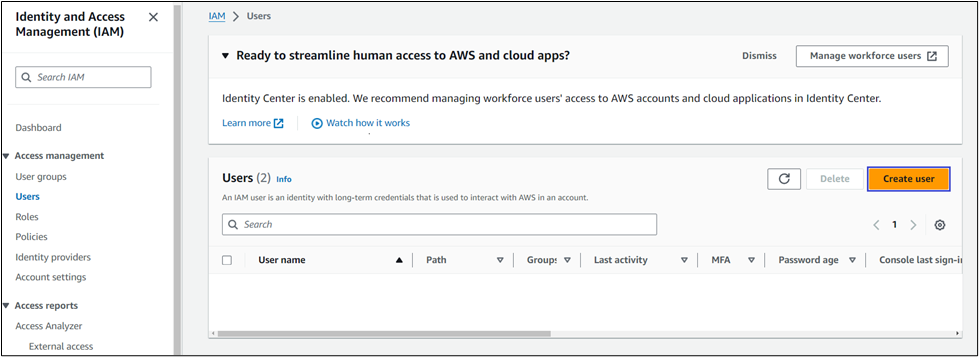

12. To create a user, go to Access management > User, then click Create user.

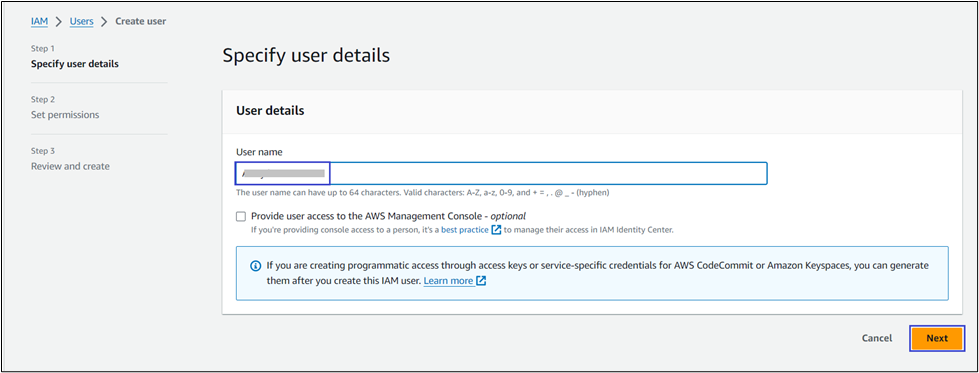

13. Under User details, enter the user name in the User name text box, then click Next.

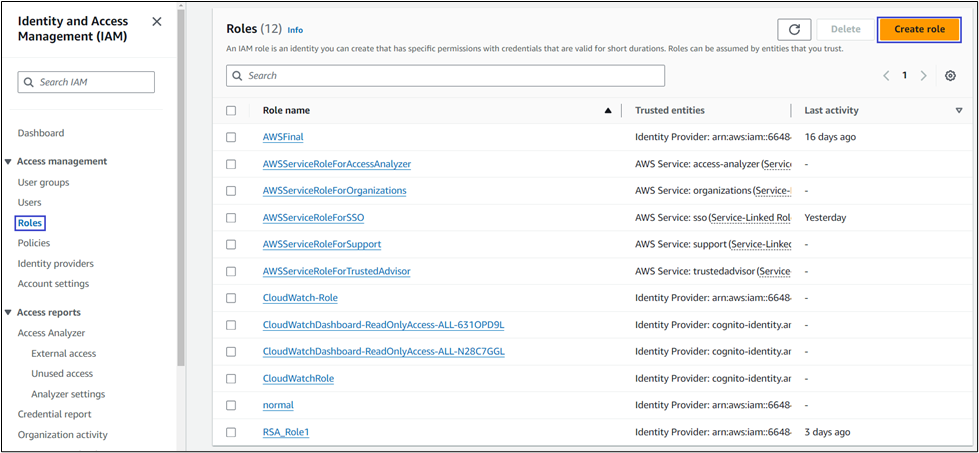

14. To create roles, go to Access Management > Roles, then click Create role.

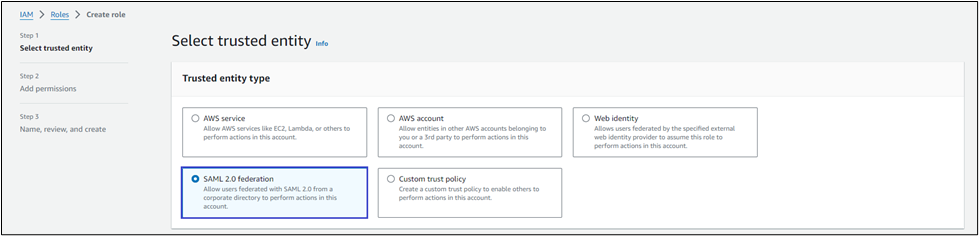

15. Select the Trusted entity type as SAML 2.0 federation.

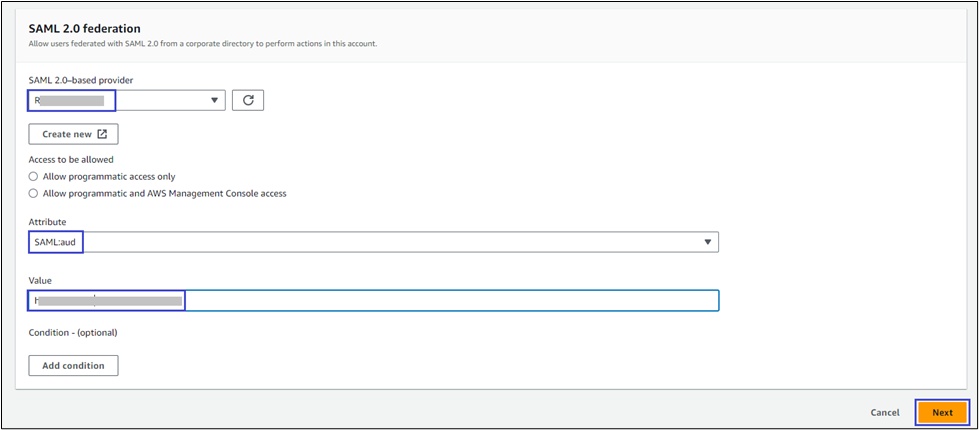

16. Provide the following details and click Next.
    1. SAML 2.0-based provider: Name for the SAML 2.0 trusted provider.
    2. Attribute: SAML:aud.
    3. Value: Assertion URL of the service provider metadata downloaded from the IAM Identity Center.

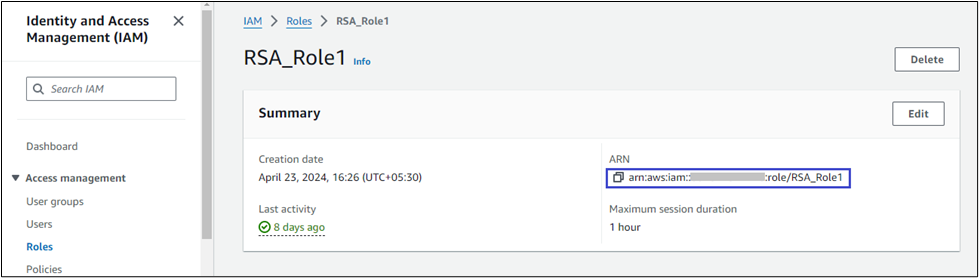

17. Copy the ARN. This is the same value as AWS role ARN value used in the RSA configuration (Attribute mapping).
18. Combine the Role ARN and the Provider ARN value, separated by a comma, to use as the Property value in the RSA platform.

The configuration is complete.
