Checking the SSL ciphers suites used by RSA Authentication Manager 8.2-8.7 SP2
Originally Published: 2017-09-03
Article Number
Applies To
RSA Product Set: SecurID
RSA Product/Service Type: Authentication Manager
RSA Version/Condition: 8.2 up to and including 8.7 SP2
Issue
Resolution
RSA Authentication Manager 8.x use Oracle WebLogic for HTTPS services such as the Security Console, Operations Console & Operations Console however there are other ports used by other services that use cipher suites.
The Oracle WebLogic configuration file called config.xml located in the /opt/rsa/am/server/config folder defines the ciphers suites used by Oracle Web Logic.

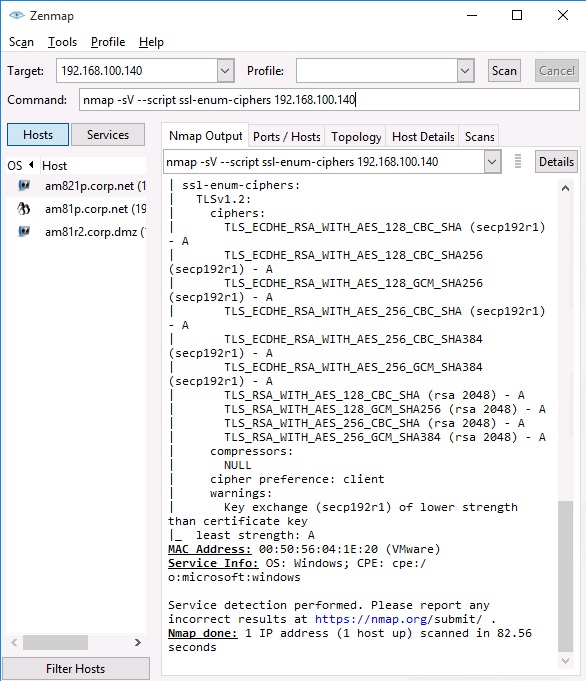

A third-party utility called the Nmap Security Scanner found at URL https://nmap.org/ can be used to check the ciphers suites used by RSA Authentication Manager 8.x. This utility has Zenmap which is the official Nmap Security Scanner Graphical User Interface for a number of platforms (Linux, Windows, Mac OS, BSD, etc.).
Usage:
nmap -sV --script ssl-enum-ciphers <host>
nmap -sV --script ssl-enum-ciphers -p <port> <host>
nmap -sV --script ssl-enum-ciphers -p <port> <host>
Example:
nmap -sV --script ssl-enum-ciphers 192.168.100.140
| ssl-enum-ciphers:
| TLSv1.2:
| ciphers:
| TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA (secp192r1)
| - A
| TLS_ECDHE_RSA_WITH_AES_128_CBC_SHA256
(secp192r1) - A
| TLS_ECDHE_RSA_WITH_AES_128_GCM_SHA256
(secp192r1) - A
| TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA (secp192r1)
| - A
| TLS_ECDHE_RSA_WITH_AES_256_CBC_SHA384
(secp192r1) - A
| TLS_ECDHE_RSA_WITH_AES_256_GCM_SHA384
(secp192r1) - A
| TLS_RSA_WITH_AES_128_CBC_SHA (rsa 2048) - A
| TLS_RSA_WITH_AES_128_GCM_SHA256 (rsa 2048) - A
| TLS_RSA_WITH_AES_256_CBC_SHA (rsa 2048) - A
| TLS_RSA_WITH_AES_256_GCM_SHA384 (rsa 2048) - A
| compressors:
| NULL
| cipher preference: client
| warnings:
| Key exchange (secp192r1) of lower strength
than certificate key
|_ least strength: A
MAC Address: 00:50:56:04:1E:20 (VMware)
Service Info: OS: Windows; CPE: cpe:/
o:microsoft:windows
Service detection performed. Please report any
incorrect results at https://nmap.org/submit/ .
Nmap done: 1 IP address (1 host up) scanned in 82.56
seconds
