Error launching the Aveksa Kiosk Password-Reset-form aka Desktop Based Password Reset in RSA Identity Governance and Lifecycle using Internet Explorer web browser
2 years ago
Originally Published: 2017-08-10
Article Number
000045607
Applies To
RSA Product Set: RSA Identity Governance and Lifecycle
RSA Version/Condition: 7.0.x
Issue

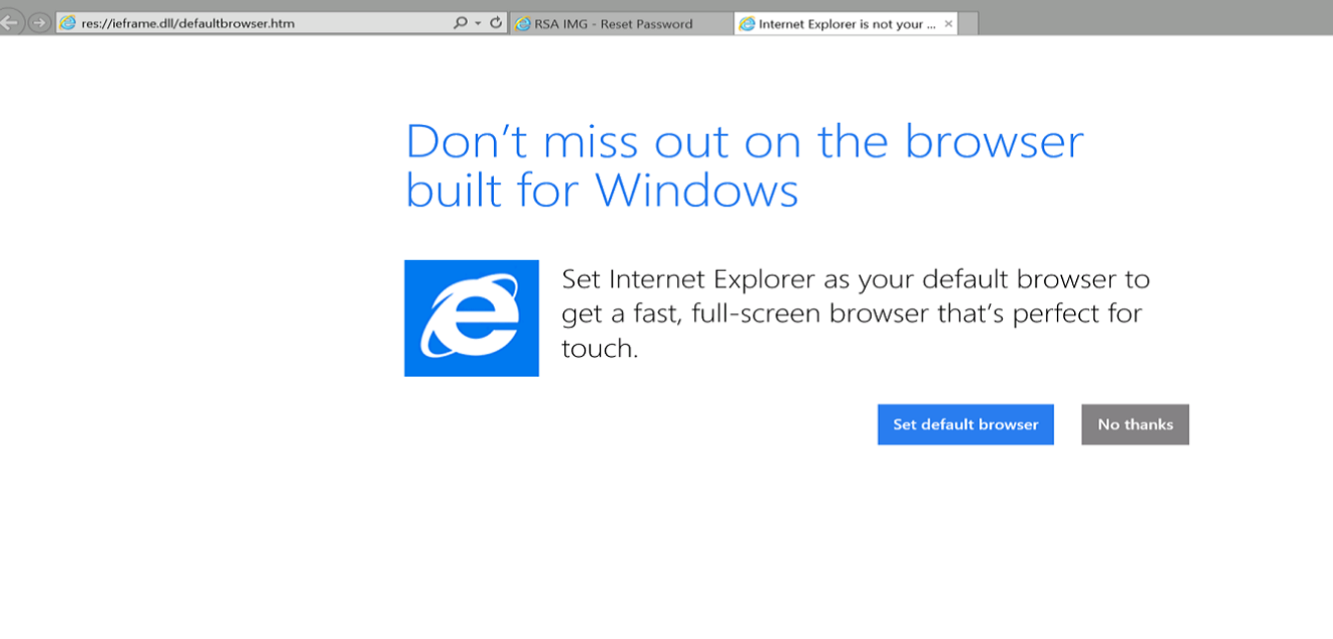

In Internet Explorer, when clicking on the "Reset My Password" link (enabled through the Aveksa Password Kiosk), the screen that comes up to reset the password is a normal browser window pointing to a different DLL rather than the expected Aveksa Password Reset form. Example:


User-added image
Cause
This is a configuration issue .The  ResetPasswordLink Value in Register.reg file should be  "-k https://name of host/aveksa/ ". However  the "-k" is missing from the ResetPasswordLink form. See the example in the screenshot below :

The –k  needs be added before the hyperlink to use kiosk mode.

[Note : The Default Browser value  is Iexplor for "Internet Explorer." The –k can be added before the hyperlink to use kiosk mode . You can Change value for Browser from Iexplore to your preferred browser in the Browser field of Register.reg file, if needed]

The location in the registry is HKLM\Software\RSA\IMG\Kios and should include the settings for Browser, BrowserDirectory, ResetPasswordLink.


User-added image
Resolution

Edit the contents of the Register.reg file .  Modify  ResetPasswordLink by adding -k flag to use kiosk mode.

1] Click on Start button of your windows host/Desktop -- Click Run

2] Type 'regedit'  it will launch Registry Editor Window.

3] Click on Path HKLM --Software--RSA--IMG--Kios  (HKLM\Software\RSA\IMG\Kios)

4] Select ResetPasswordLink click Edit-Modify from main Menu to Edit String

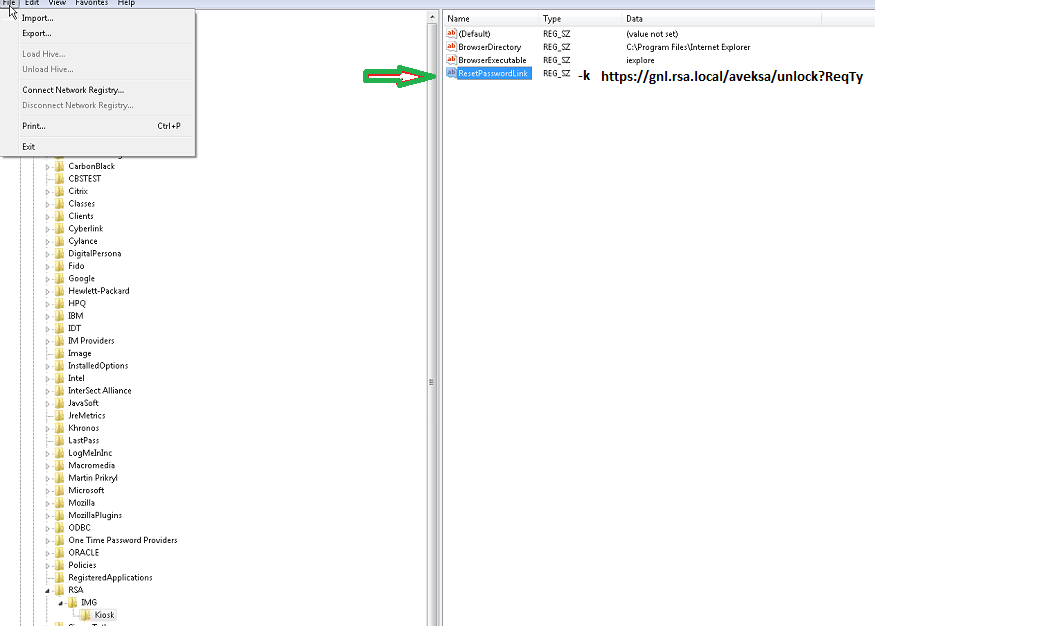

5] Modify ResetPasswordLink data by  adding -k in front of https shown in image below :

–k need  to add before the hyperlink to use kiosk mode as:  -k https://gnl.rsa.local/aveksa/unlock?ReqTy]

6) Save Registry entries

7) Try/Test  password kiosk

User-added image
Notes
The Aveksa Kiosk is a solution that allows enterprises to deploy a login solution that allows reset of passwords for an authorization source for Aveksa Compliance Manager. The Kiosk provides a way to integrate the “External Password Reset” form to a Windows Desktop Login module.
