Monday.com - SAML Relying Party Configuration - RSA Ready Implementation Guide
2 years ago
This article describes how to integrate RSA with Monday.com using SAML Relying Party.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service as Relying Party to Monday.com.
Procedure
  1. Sign in to RSA Cloud Administration Console.

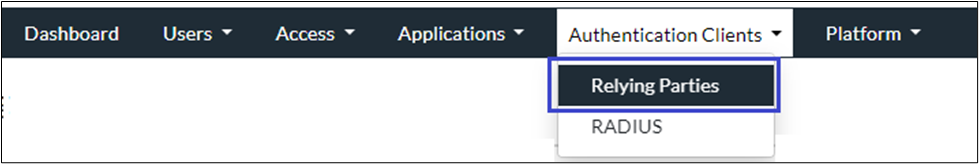

  2. Click Authentication Clients > Relying Parties.                                                                                                                                           image.png

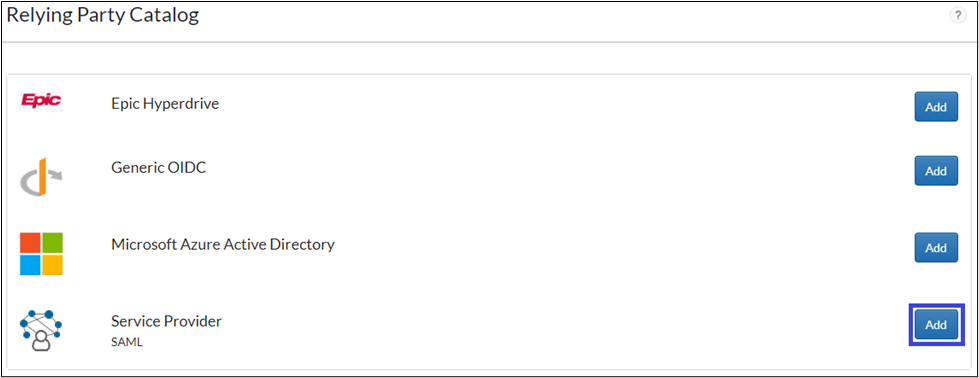

  3. On the Relying Party Catalog page, click Add a Relying Party and click Add for Service Provider SAML.                                         image.png

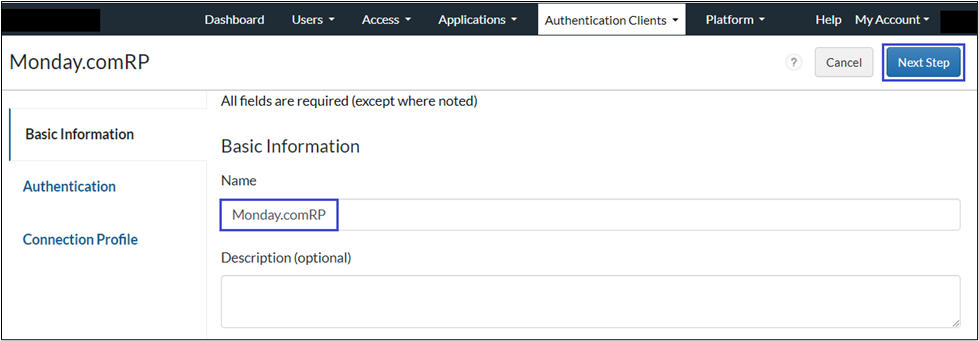

  4. On the Basic Information page, enter the name for the application in the Name field and click Next Step.                                           image.png

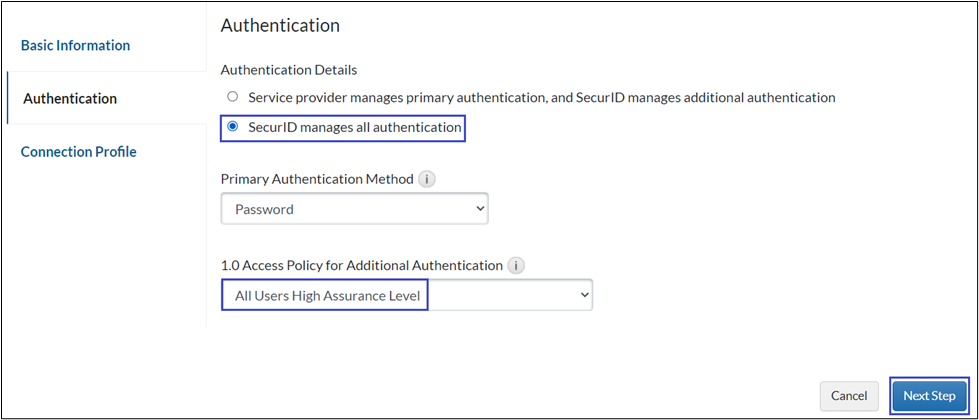

  5. On the Authentication page, choose SecurID manages all authentication.
  6. Select a Primary Authentication Method and Access Policy as required and click Next Step.                                                               image.png

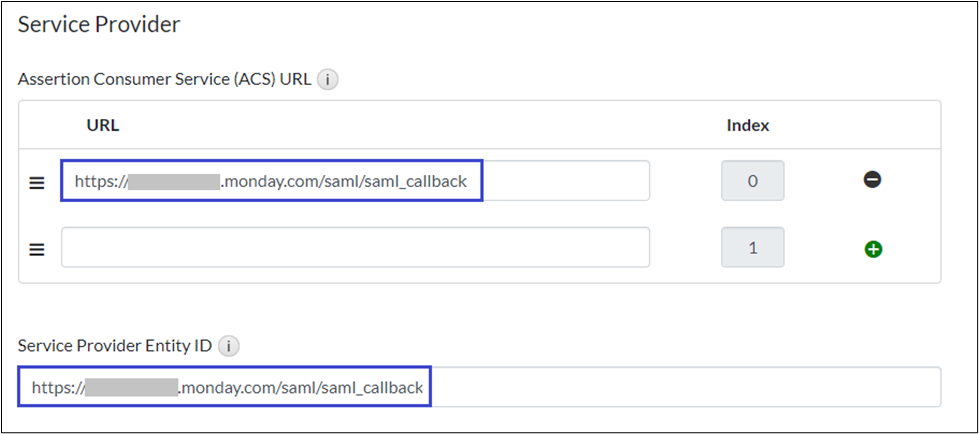

  7. Provide the Service Provider details in the following format:
    1. ACS URL: https://<Sub domain>moday.com/saml/saml_callback
    2. Service Provider Entity ID: https://<Sub domain>moday.com/saml/saml_callback
      Refer to the Notes section for instructions on how to obtain the <Sub domain>.                                                                            image.png

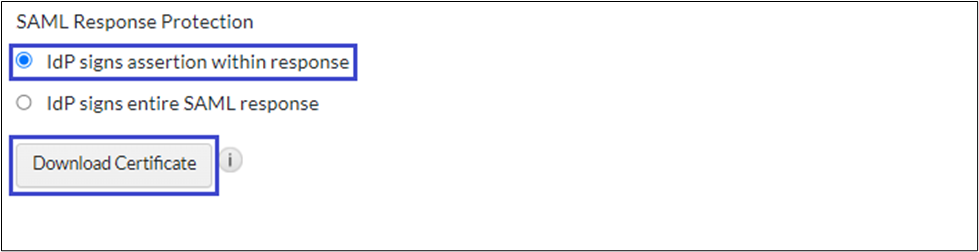

  8. In the SAML Response Protection section, choose IdP signs assertion within response.
  9. Download the certificate by clicking Download Certificate.                                 image.png
  10. Click Show Advanced Configuration.

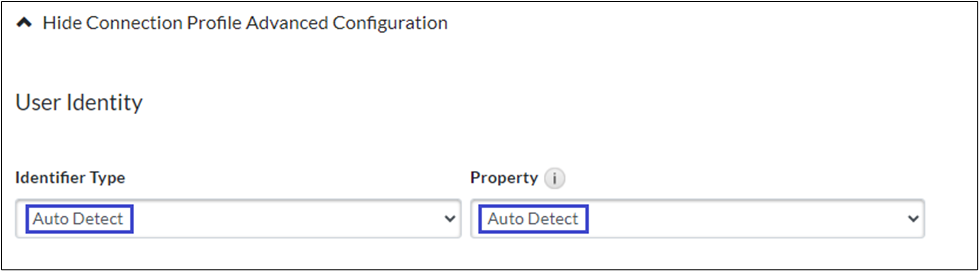

  11. Under the User Identity section, configure Identifier Type and Property. For example, Identifier TypeAuto Detect and PropertyAuto Detect.                                                                                                                                                            image.png
  12. Click Save and Finish.

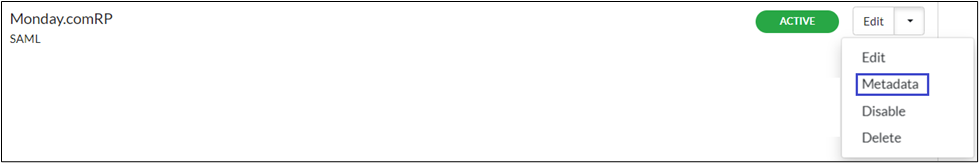

  13. On the My Relying Parties page, click the Edit drop-down icon and select the Metadata option to download the metadata.                 image.png

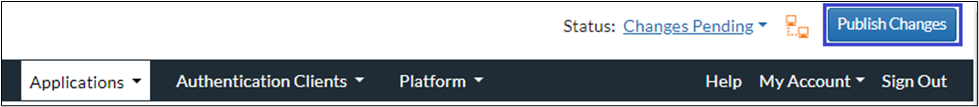

  14. Click Publish Changes. Your application is now enabled for SSO.                                                                                                           image.png image.png

Notes

To obtain <Sub domain> value:

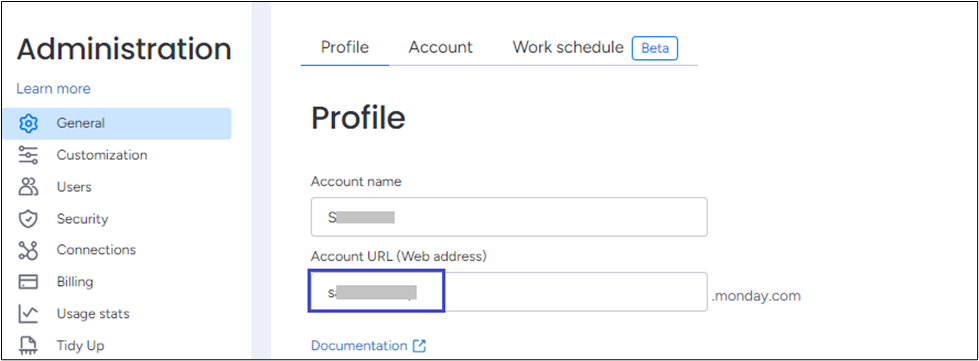

  1. Log on to Monday.com and click the profile icon.
  2. Click Administration > General > Copy Account URL (Web address).
Account URL value is Sub domain. Construct ACS URL and Entity ID by replacing Sub domain value.                                                          image.png

Configure Monday.com

Perform these steps to configure Monday.com.
Procedure
  1. Log on to monday.com as an administrator.

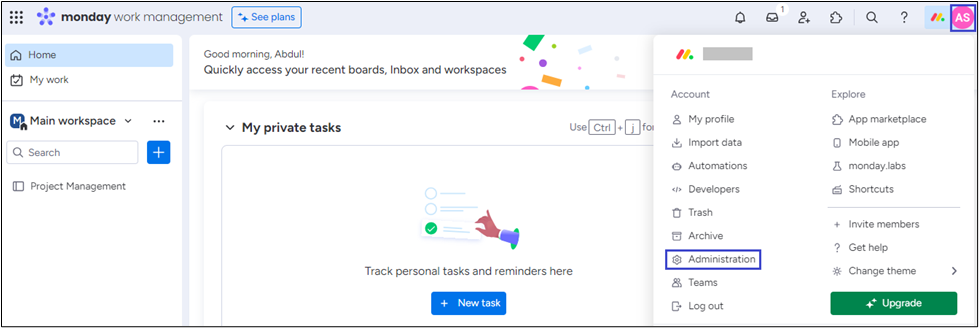

  2. Click the Profile at the top-right corner and select Administration.                                                                                                              image.png

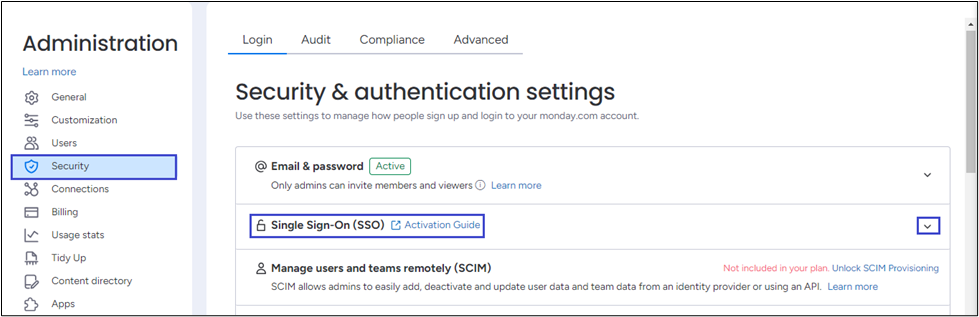

  3. Under Administration, click Security > Single Sign-On (SSO).                                                                                                      image.png

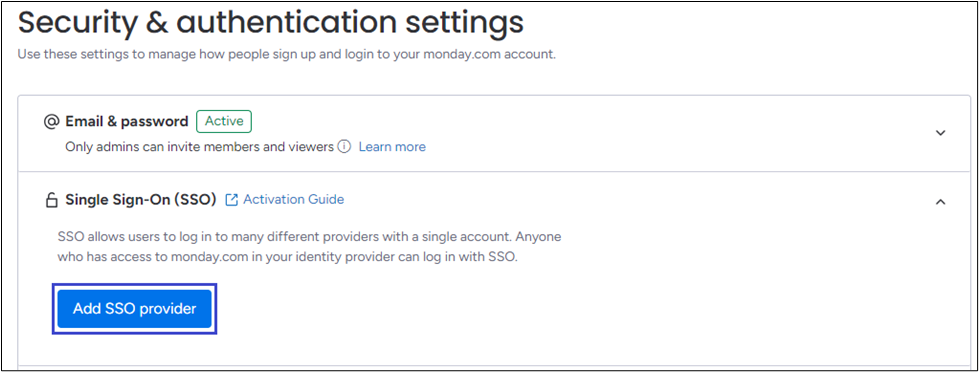

  4. Click Add SSO provider.                                                                                                                                                                    image.png

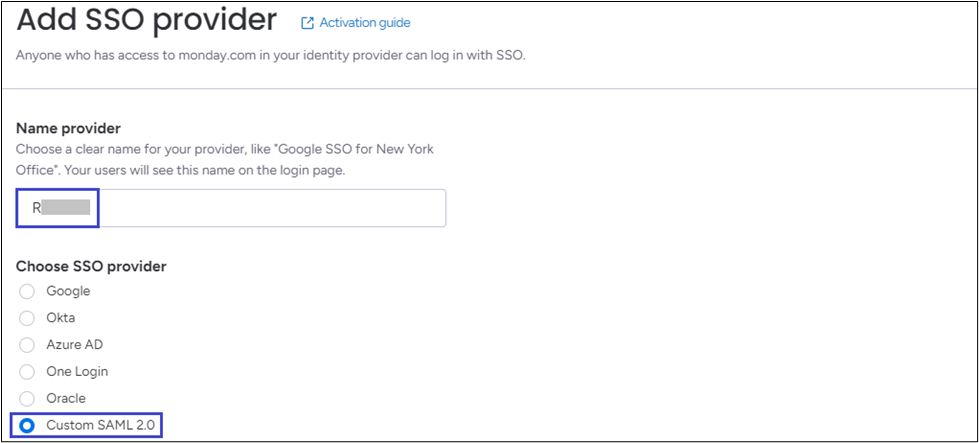

  5. Provide the following details:
    1. Name provider - Name of the Identity Provider.
    2. Choose SSO provider – Select Custom SAML 2.0.                                                                                                            image.png

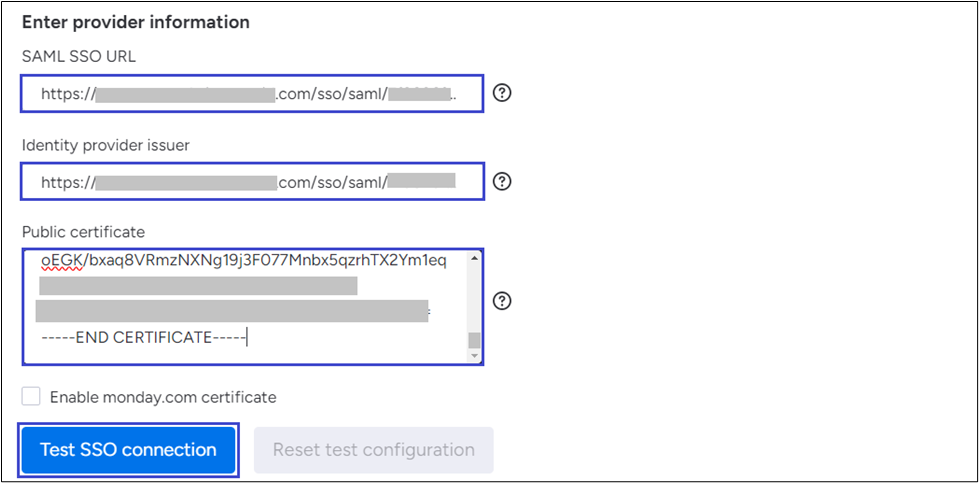

  6. Enter provider information and click Test SSO connection.
    1. SAML SSO URL – The SingleSignOnService value that can be obtained from the metadata file downloaded from RSA.
    2. Identity provider issuer – The EntityID value that can be obtained from the metadata file downloaded from RSA.
    3. Public certificate – Copy and paste the certificate downloaded from RSA.
    4. (Optional) Select the Enable monday.com certificate checkbox.                                                                                      image.png
  7. After the SSO connection is tested, click Add SSO provider.                                                                                                                image.png
The configuration is complete.
Return to Monday.com - RSA Ready Implementation Guide.
