This article describes how to integrate OneLogin with RSA Authentication Manager using RADIUS.


Configure RSA Authentication Manager

Perform these steps to configure RSA Authentication Manager using RADIUS.
Procedure

1. Sign in to Security Console.

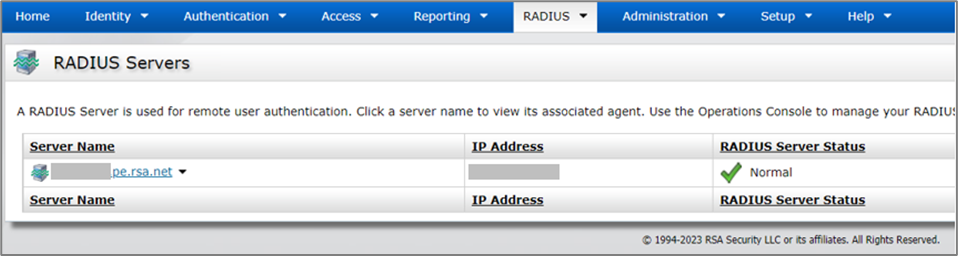

2. Navigate to RADIUS > RADIUS Servers and make a note of the IP address of the selected RADIUS server. This is used in the OneLogin configuration.

3. Navigate to RADIUS > RADIUS Clients and click Add New.

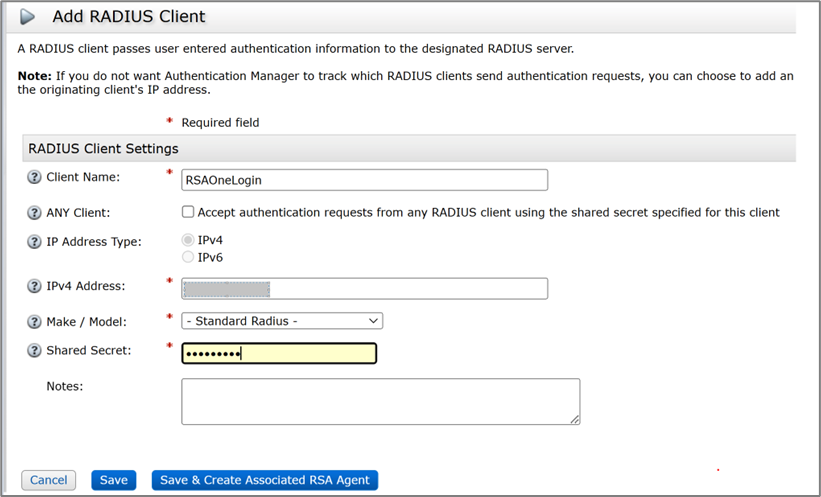

4. On the Add RADIUS Client page, enter the following details:
   1. Client Name: Enter a descriptive name for the RADIUS client.
   2. IPv4 Address: Enter the IP address of the RADIUS client.
   3. Make / Model: Select Standard Radius from the drop-down list.
   4. Shared Secret: Create and enter a secure shared secret. This secret is used for secure communication between the RADIUS client and the RADIUS server.

5. Click Save & Create Associated RSA Agent.
6. On the Add New Authentication Agent page, click Save, and then confirm by clicking Yes, Save Agent.

Notes

• RSA Authentication Manager RADIUS server listens on ports UDP 1645 and UDP 1812.
• The relationship of the agent host record to the RADIUS client in the Authentication Manager can be 1 to 1, 1 to many, or 1 to all (global).
• Shared Secret must be an alphanumeric string between 1 and 31 characters in length and is case-sensitive.

The configuration is complete.

Return to OneLogin - RSA Ready Implementation Guide.
