This section contains instructions on how to integrate WALLIX Bastion with RSA Authentication Manager using RADIUS.

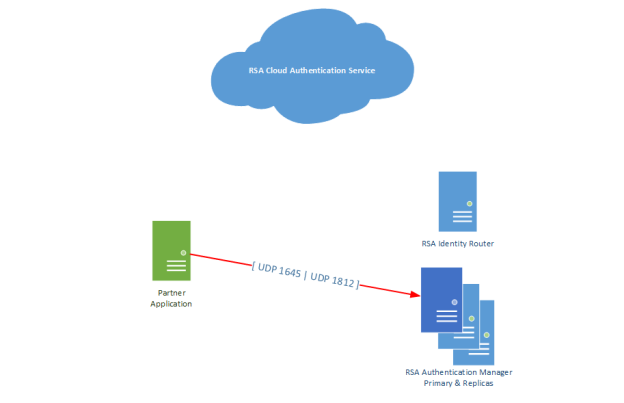

Architecture Diagram

RSA Authentication Manager

To configure your RSA Authentication Manager for use with a RADIUS Agent, you must configure a RADIUS client and a corresponding agent host record in the Authentication Manager Security Console.

The relationship of agent host record to RADIUS client in the Authentication Manager can 1 to 1, 1 to many or 1 to all (global).

RSA Authentication Manager listens on ports UDP 1645 and UDP 1812.

WALLIX Bastion

Follow the steps in this section to configure WALLIX Bastion as a RADIUS client to RSA Authentication Manager.

Procedure

1. Sign in to Wallix Bastion Administrative user interface and browse to Configuration > External Authentication and click to add a new RADIUS server.

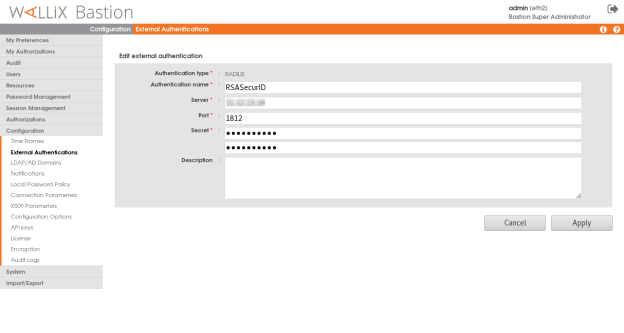

2. Configure the RADIUS server settings and click Apply.

• Authentication Name: Enter a descriptive name for the RSA Authentication Manager.
• Server: Enter the hostname or IP address of the primary RSA Authentication Manager server.
• Port: Enter 1812 or 1645.
• Secret: Enter the RADIUS shared secret to match as specified in the RSA AM Security Console.

3. Repeat steps 1-2 for AM replica servers.

Next Step: Proceed to the Use Case section for information on how to apply the RADIUS configuration to the use case.
