Robin - SAML My Page SSO Configuration - RSA Ready Implementation Guide
2 years ago
This article describes how to integrate Robin with RSA Cloud Authentication Service using My Page SSO.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service using My Page SSO.
Procedure

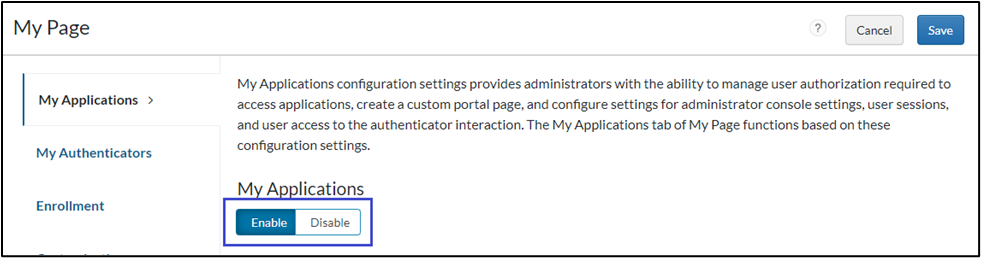

  1. Enable My Page SSO by accessing the RSA Cloud Administration Console > Access > My Page > Single Sign-On (SSO). Ensure it is enabled and protected using two-factor authentication - Password and Access Policy.                                                                                 image.png

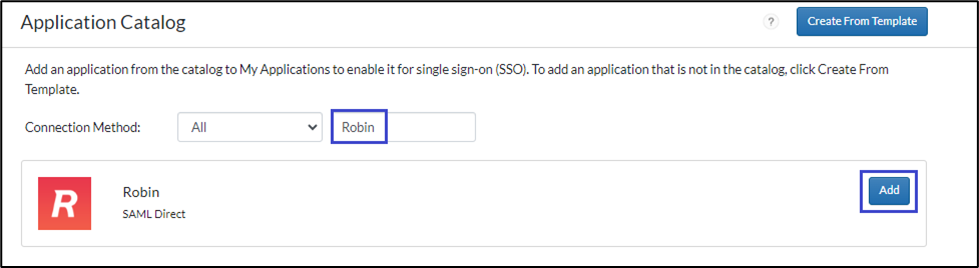

  2. On the Applications > Application Catalog page, search for Robin and click Add to add the connection.                                            image.png

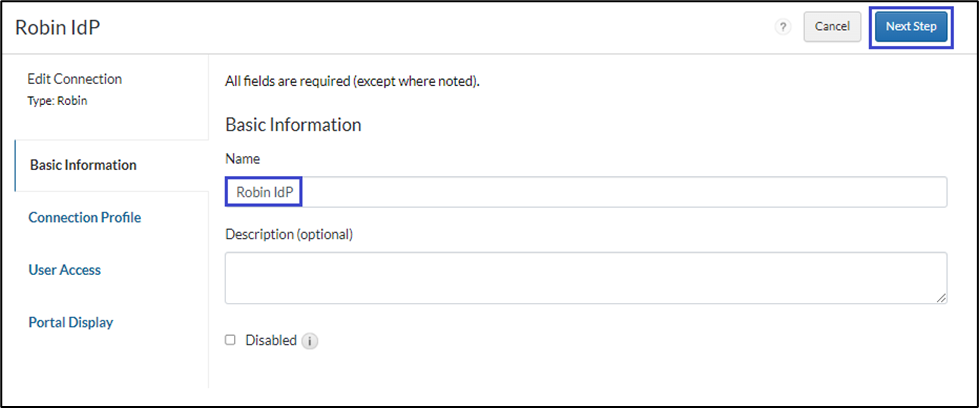

  3. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.                                            image.png

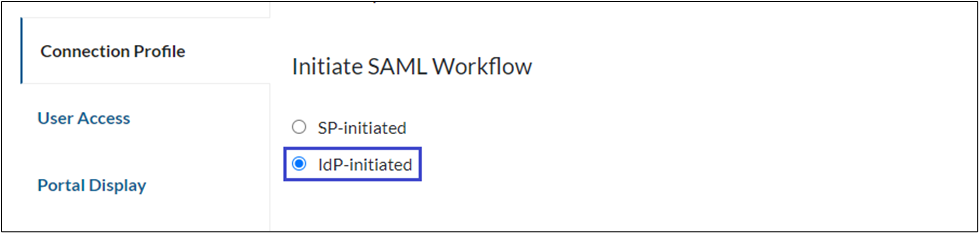

  4. On the Connection Profile page, click the IdP-initiated option.                                                                                                                  image.png

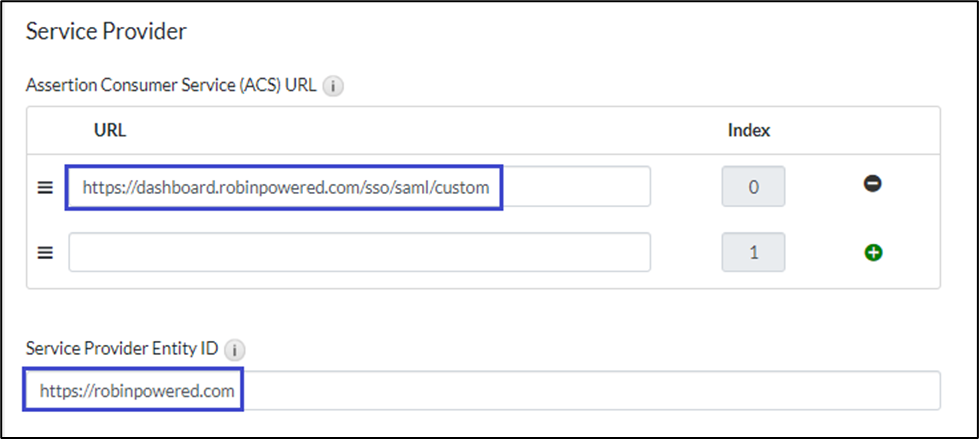

  5. Provide the Service Provider details in the following format:
    1. ACS URL: https://dashboard.robinpowered.com/sso/saml/custom.
    2. Service Provider Entity ID: https://robinpowered.com.                                                                                                                   image.png

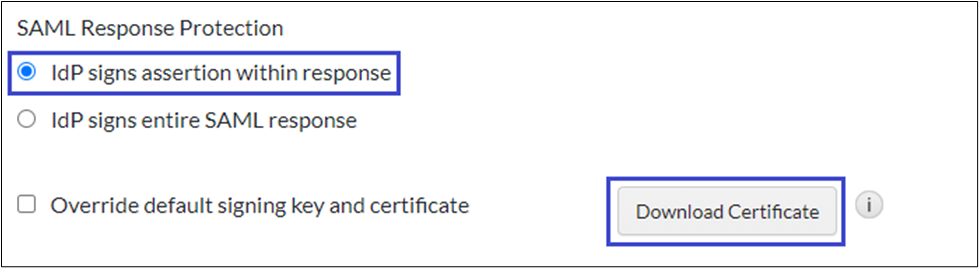

  6. In the SAML Response Protection section, choose IdP signs assertion within response.
  7. Download the certificate by clicking Download Certificate.                                                                                                                          image.png
  8. Click Show Advanced Configuration.

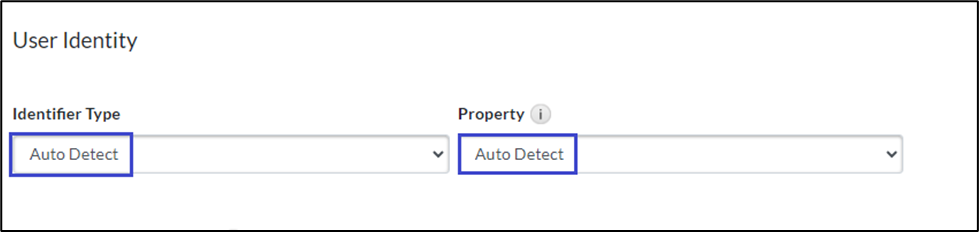

  9. Under the User Identity section, configure Identifier Type and Property. For example, Identifier TypeAuto Detect and PropertyAuto Detect.                                                                                                                                                                  image.png

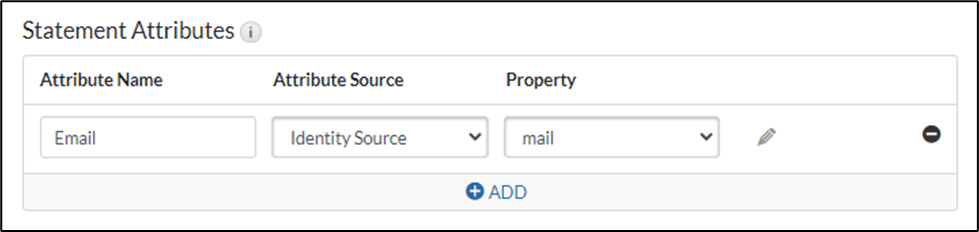

  10. Under the Statement Attributes section, add the attribute as shown in the following figure.                                                                         image.png
  11. Click Next Step.

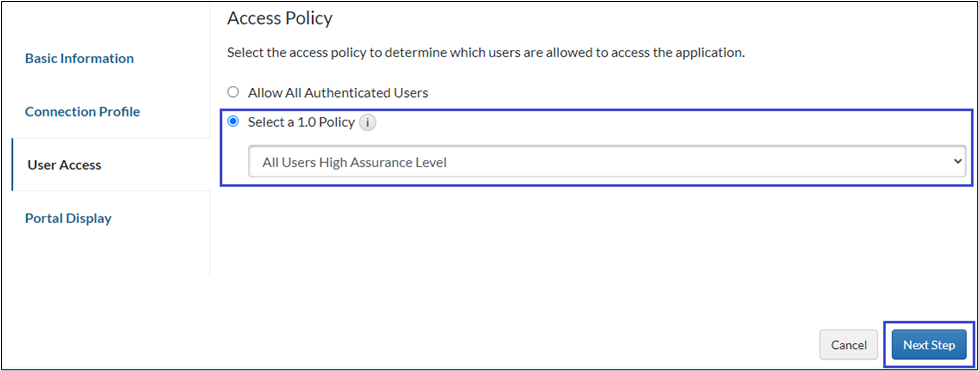

  12. Choose your desired Access Policy for this application and click Next Step > Save and Finish.                                                               image.png

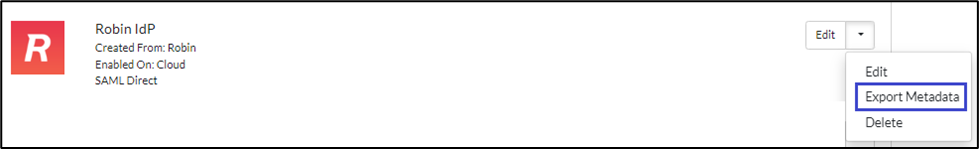

  13. On the My Applications page, click the Edit drop-down icon and select Export Metadata to download the metadata.                              image.png
  14. Click Publish Changes. Your application is now enabled for SSO.                                                                                                                image.png image.png

Configure Robin

Perform these steps to configure Robin.
Procedure
  1. Log on to Robin with administrator credentials.

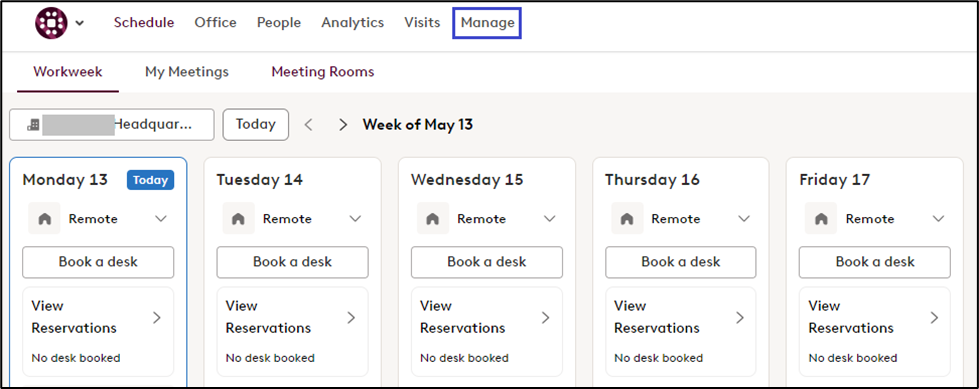

  2. Click Manage.                                                                                                                                                                                                   image.png

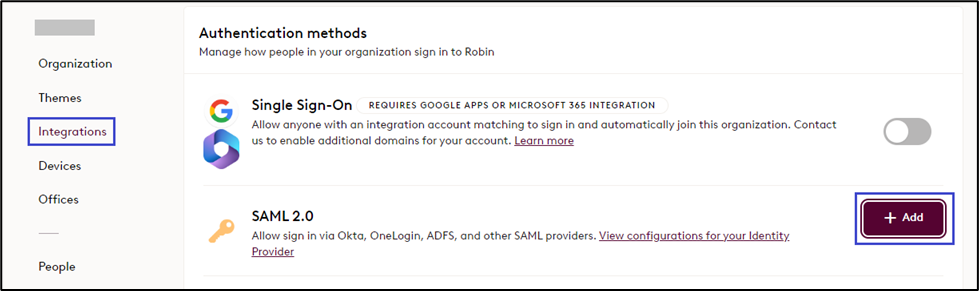

  3. Click Integrations and click Add next to SAML 2.0.                                                                                                                                  image.png

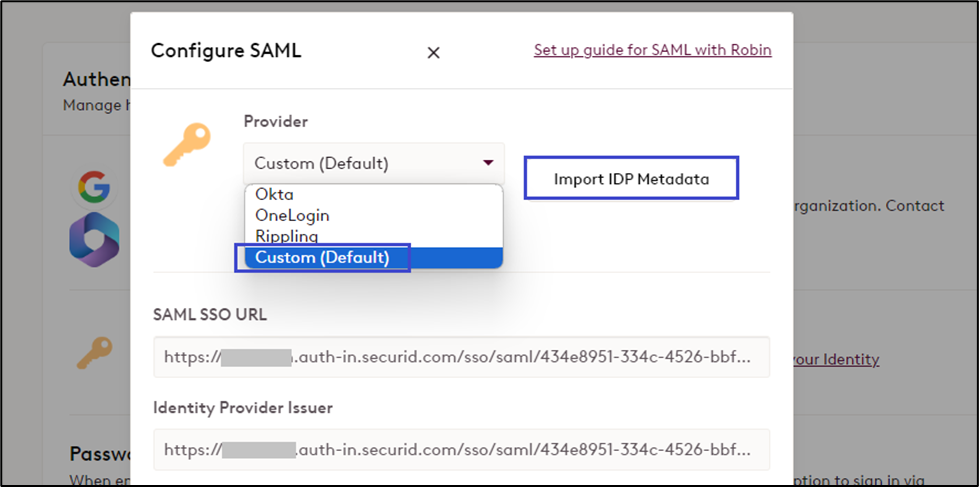

  4. In the Provider list, select Custom (Default).
  5. Click Import IDP Metadata, and upload the metadata downloaded from RSA.  image.png

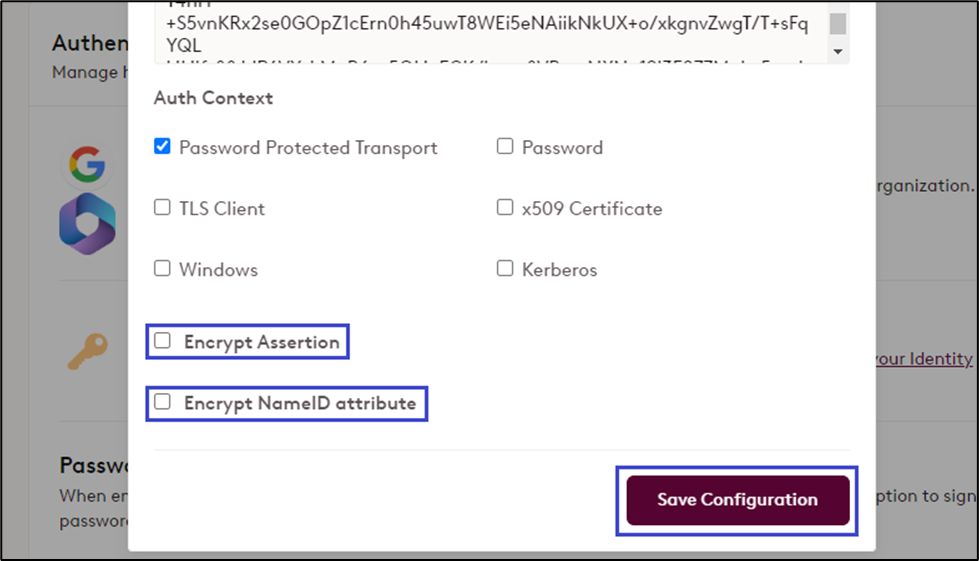

  6. Scroll down, clear the Encrypt Assertion and Encrypt NameID attribute checkboxes, and click Save Configuration.                                image.png
The configuration is complete.
Return to Robin - RSA Ready Implementation Guide.
