SBR RADIUS returning a string attribute with an additional character in the Access-Accept packet
Originally Published: 2022-04-07
Last Modified: 2023-09-25
Article Number
000067886
Applies To
RSA Product Set: SecurID
RSA Product/Service Type: Authentication Manager
RSA Version/Condition: 8.5
Issue
- After configuring a RADIUS profile for a certain Return Attribute, the authentication is successful. However, the packet capture shows the attribute returned having an additional character at its end.

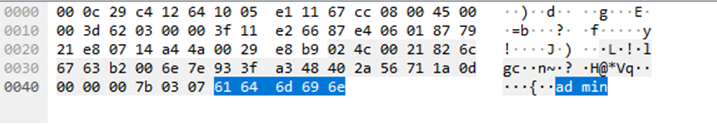

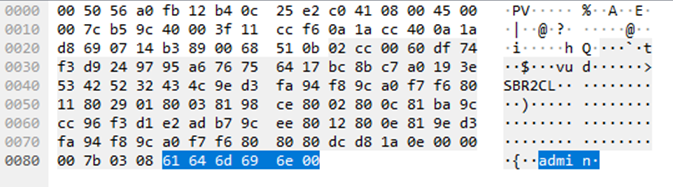

- The first capture shown below is for a test environment, while the second one is from the RSA RADIUS server. An additional byte was introduced "Null Character".
Cause
- In Steel-Belted Radius, the NoNullTermination flag in the radius.ini configuration file allows return attributes to be sent with a null character at its end if set to 0.
- By default, its value is set to 0.
Resolution
1. Log in to the Operations Console of the primary server.
2. From Deployment Configuration > RADIUS Servers
3. When prompted, enter the Super Admin credentials.
4. Navigate to the Server Name > Manage Server Files.
3. In the Configuration Files tab, edit radius.ini.
4. Navigate to the NoNullTermination parameter, remove the comment ";" and change its value to 1
5. Save and restart the RADIUS service.
6. The Return Attribute is shown as it is with no additional characters.
7. Repeat steps 1-5 for every RADIUS replica server in your deployment.
Workaround
N/A
Notes
N/A
