AXOMO - SAML SSO Agent Configuration - RSA Ready SecurID Access Implementation Guide

This section describes how to integrate RSA SecurID Access with AXOMO using a SAML SSO Agent.

Architecture Diagram

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service as an SSO Agent SAML IdP to Axomo.

Procedure

1. 1. Sign into the RSA Cloud Administration Console and browse to Applications > Application Catalog.

   2. Click on Create From Template found in he upper right of the page then select SAML Direct.

   3. On Basic Information page enter a Name for the application, ie. AXOMO Then click on Next Step.

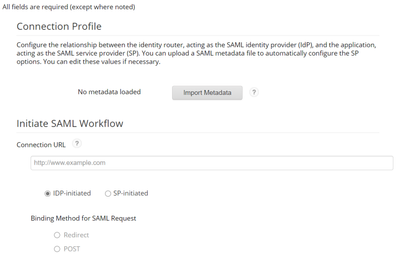

   4. On Connection Profile page.

      1. 1. In Connection URL field, verify the default setting.

         2. Choose IDP-Initiated or SP-Initiated.

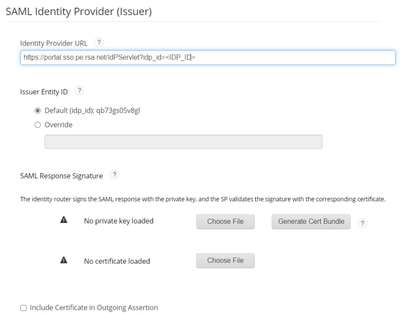

      1. 1. Scroll down to SAML Identity Provider (Issuer) section.




         2. Note the Identity Provider URL and Issuer Entity ID. These values are automatically generated. They may be needed later for the configuration of AXOMO .

         3. Click on Generate Cert Bundle, set a a common name for your company certificate. Then click Generate and Download .

         4. Select Choose File and upload the private key from the generated certificate bundle.

         5. Select Choose File and upload the cert from the generated certificate bundle.

         6. Select Include Certificate on Outgoing Assertion.

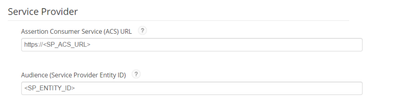

      1. 1. Scroll down to Service Provider section.


         2. Enter the Assertion Consumer Service (ACS) This is the REPLY URL found in your instance of AXOMO. For example https://api.axomo.com/v3/rachit/SAML2/.

         3. Enter the Audience (Service Provider Issuer ID) enter "https://api.axomo.com".

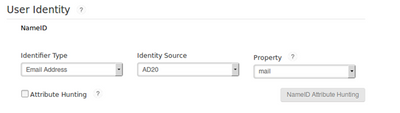

         1. Scroll down to User Identity section.


         2. Ensure Identifier Type = Email Address, set your Identity Source and Property = mail.

      2. Click Next Step

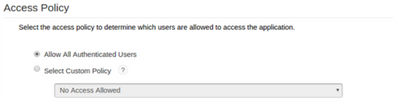

   5. On User Access page select the Access Policy you require. Allow All Authenticated Users is the least restrictive. Click Next Step


1. 1. On Portal Display Page

      1. Select Display in Portal

      2. Upload an Application Icon if you wish

      3. Set an Application Tooltip if you wish.

      4. Click on Save and Finish

   2. Click on Publish Changes. Your application is now enabled for SSO. If you make any additional changes to the application configuration you will need to republish.


Configure AXOMO

Perform these steps to integrate AXOMO with RSA SecurID Access as a SAML SSO Agent.

Procedure

1. Sign into AXOMO  and browse to User Management > User Settings.

2. Scroll down to Enable Single Sign On and select SAML2 Authentication.

3. Click on Edit SSO Settings.

4. Note the Rely URL, this is used above in the RSA CAS configuration. For example, https://api.axomo.com/v3/rachit/SAML2/.

5. Enter an Application ID, this is used above in the RSA CAS configuration. For example, MyAxomo.

6. For SAML Signing Certificate (base64) paste the contents of RSA SecurID Access public certificate “cert.pem” file. This file is found in the certificate bundle that was generated and downloaded in the RSA CAS configuration above.

7. For IDP Issuer, enter the Issuer Entity ID from the RSA CAS configuration above.

8. For Login URL, enter the Identity Provider URL from the RSA CAS configuration above. For example, https://portal.sso.pe.rsa.net/IdPServlet?idp_id=157mnki28yowd.

9. For Login ID choose Email.

10. Click on OK.

Configuration is complete.

Next Step: Head back to the main page .
