Asana - SAML My Page SSO Configuration - RSA Ready Implementation Guide
2 years ago
This article describes how to integrate Asana with RSA Cloud Authentication Service using My Page SSO.

Configure RSA Cloud Authentication Service

Perform these steps to configure RSA Cloud Authentication Service using My Page SSO.
Procedure

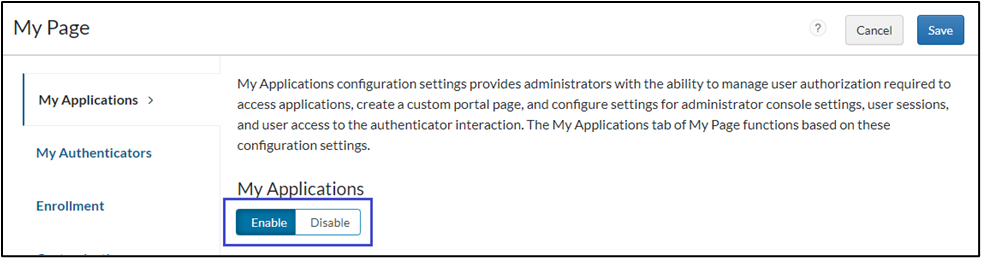

  1. Enable My Page SSO by accessing the RSA Cloud Administration Console > Access > My Page > Single Sign-On (SSO). Ensure it is enabled and protected using two-factor authentication - Password and Access Policy.                                                                                image.png

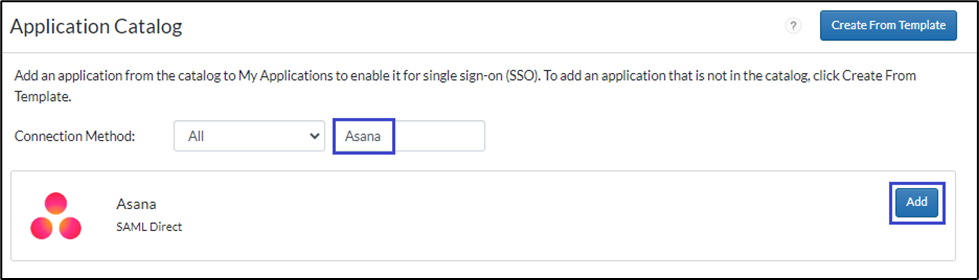

  2. On the Applications > Application Catalog page, search for Asana and click Add to Add Connection.                                            image.png

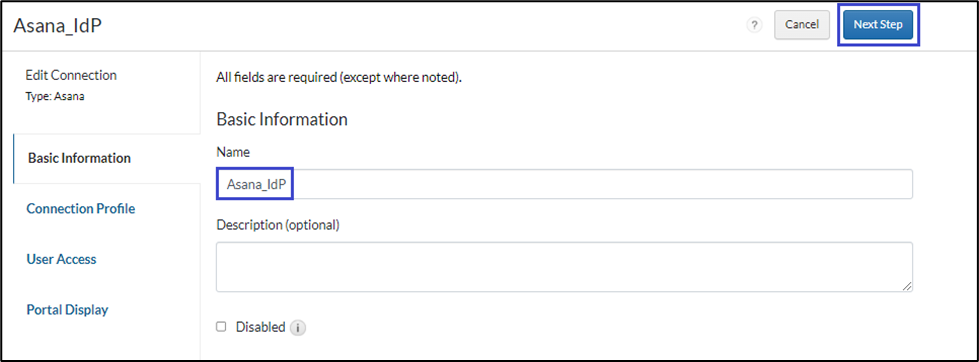

  3. On the Basic Information page, enter a name for the configuration in the Name field and click Next Step.                                        image.png

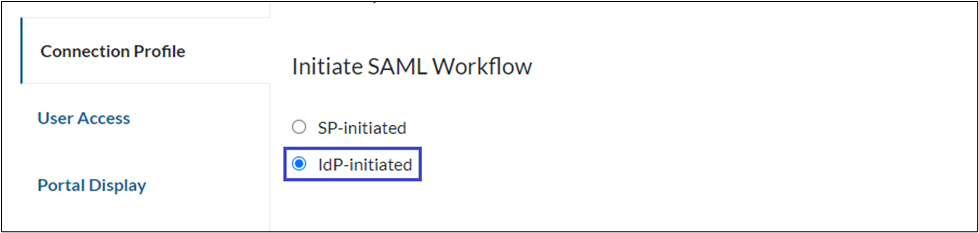

  4. On the Connection Profile page, click the IdP-initiated option.                                                                                                            image.png

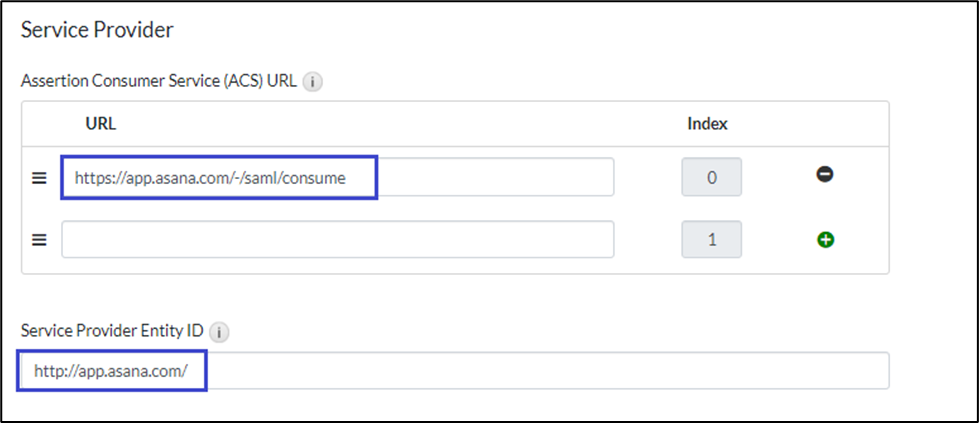

  5. Provide the Service Provider details in the following format:
    1. ACS URL: https://app.asana.com/-/saml/consume.
    2. Service Provider Entity ID: http://app.asana.com/.                                                                                                                      image.png

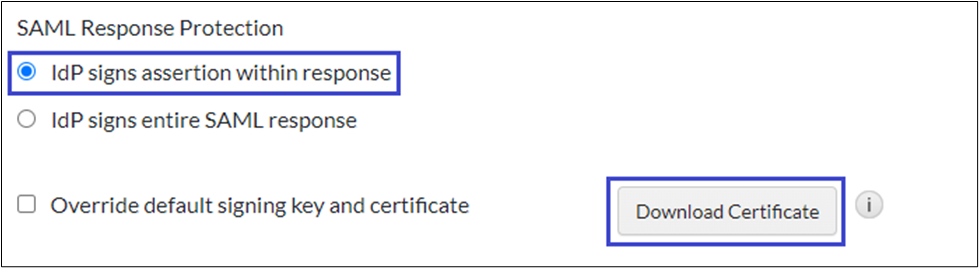

  6. In the SAML Response Protection section, choose IdP signs assertion within response.
  7. Download the certificate by clicking Download Certificate.                                                                                                                         image.png
  8. Click Show Advanced Configuration.

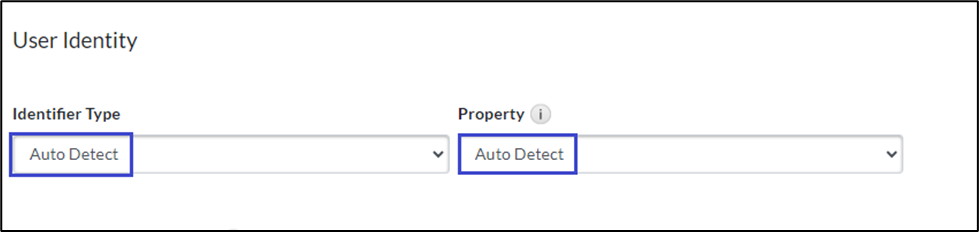

  9. Under the User Identity section, configure Identifier Type and Property. For example, Identifier TypeAuto Detect and PropertyAuto Detect.                                                                                                                                                             image.png
  10. Click Next Step.

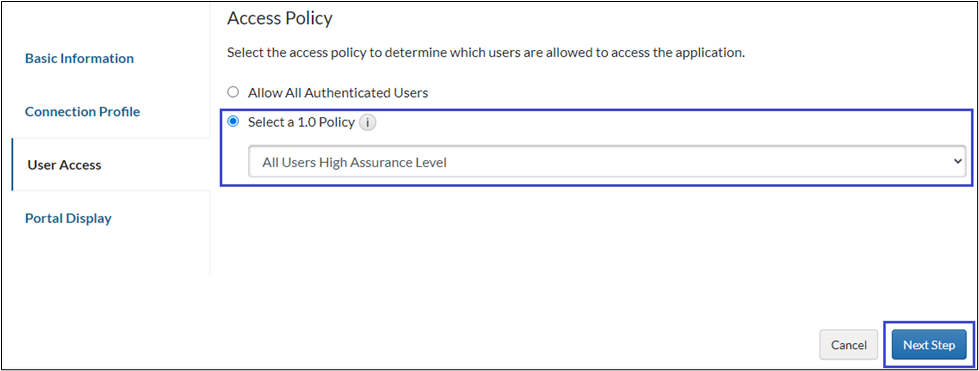

  11. Choose your desired Access Policy for this application and click Next Step > Save and Finish.                                                              image.png

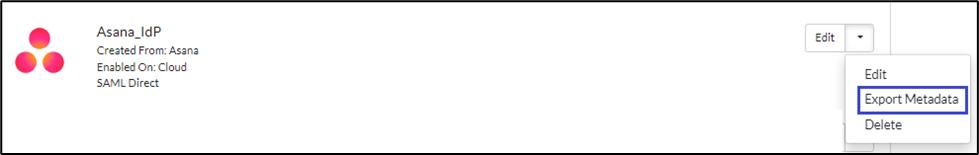

  12. On the My Applications page, click the Edit drop-down icon and select Export Metadata to download the metadata.                           image.png
  13. Click Publish Changes. Your application is now enabled for SSO.                                                                                                            image.png  image.png

Configure Asana

Perform these steps to configure Asana.
Procedure
  1. Log on to Asana with administrator credentials - https://app.asana.com/-/login.

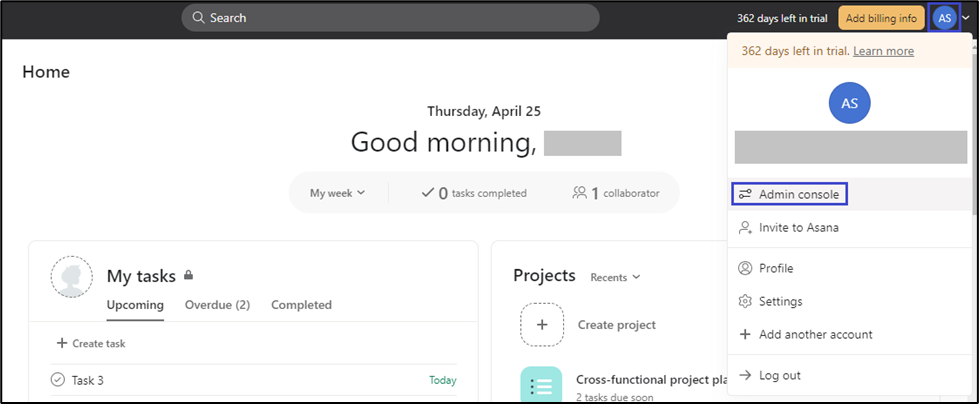

  2. Click your Profile and select Admin console.                                                                                                                                          image.png

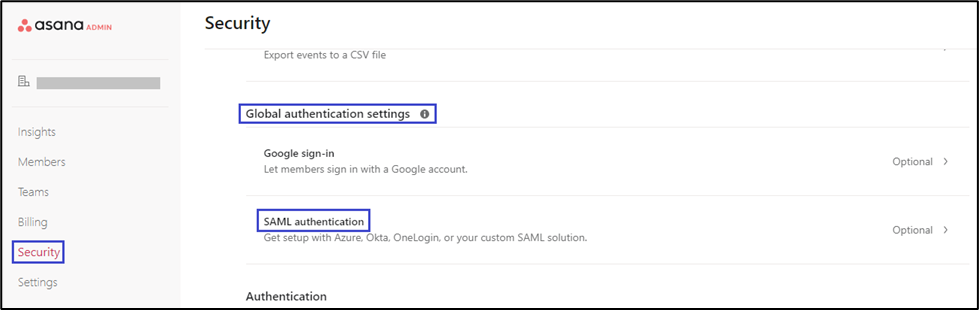

  3. Click Security and under the Global authentication settings section, select SAML authentication.                                                      image.png

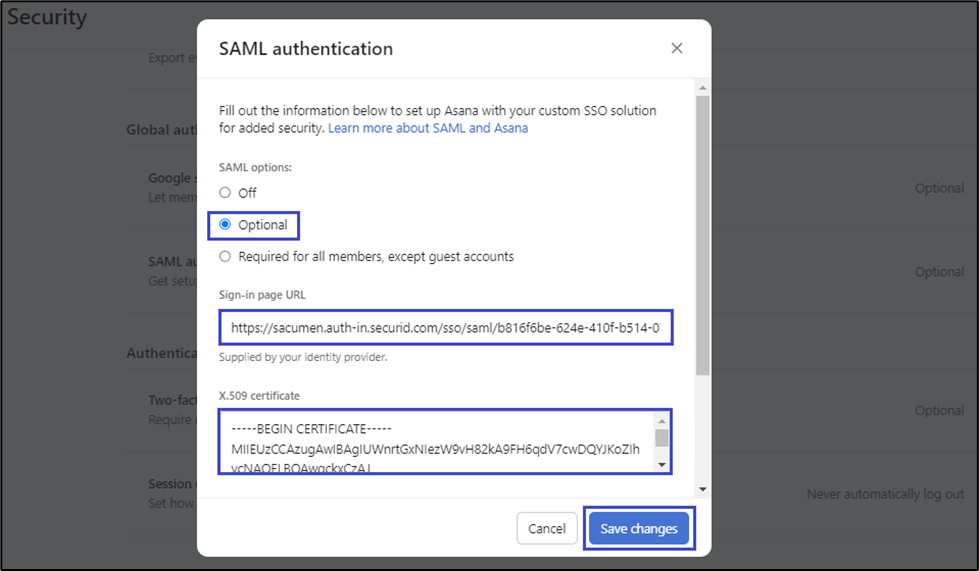

  4. Perform the following steps in the SAML authentication window and click Save changes.
    1. SAML options – Choose as required (in this case, it is Optional).
    2. Sign-in page URL – The SingleSignOnService value that can be obtained from the metadata file downloaded from RSA.
    3. X.509 Certificate – Copy and paste the certificate downloaded from RSA.                                                                                   image.png
The configuration is complete.
Return to Asana - RSA Ready Implementation Guide.
