Report formats are not retained correctly when downloaded in RSA Identity Governance & Lifecycle
2 years ago
Originally Published: 2019-06-03
Article Number
000044085
Applies To
RSA Product Set:  Identity Governance & Lifecycle
RSA Version/Condition: 7.1.0 , 7.1.1

Issue

Running any reports (default/custom) with any style does not retain the format when the files are downloaded from the RSA Identity Governance & Lifecycle User Interface Reports section. For example, the font color might not be retained or the font size might not be retained.

This issue is seen when using the Fill Report in Background button.

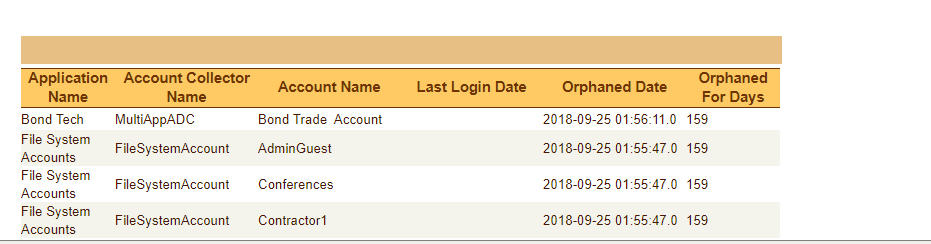

Below is an example of a Report in Classic Style that is not rendering the correct format.

User-added image

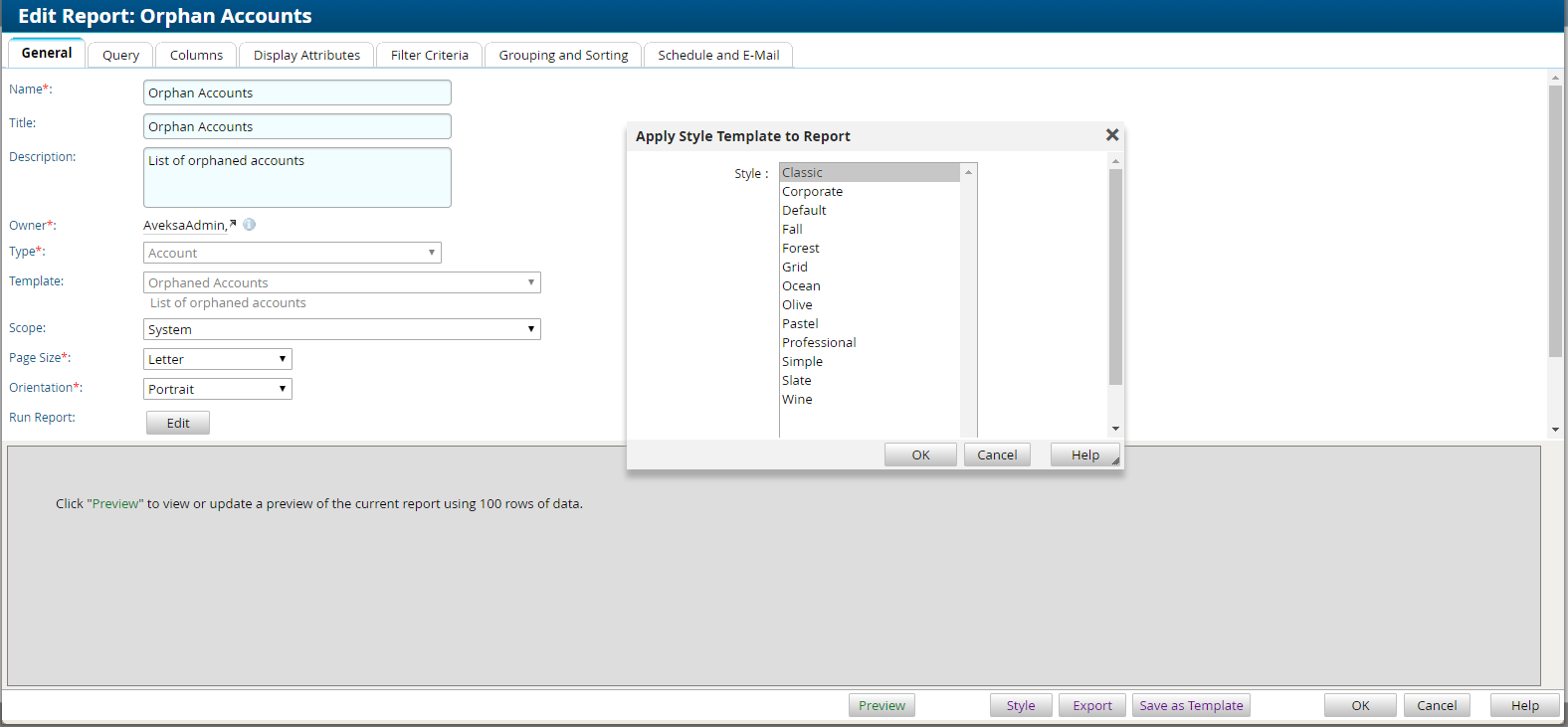

A preview shows the correct format.

User-added image

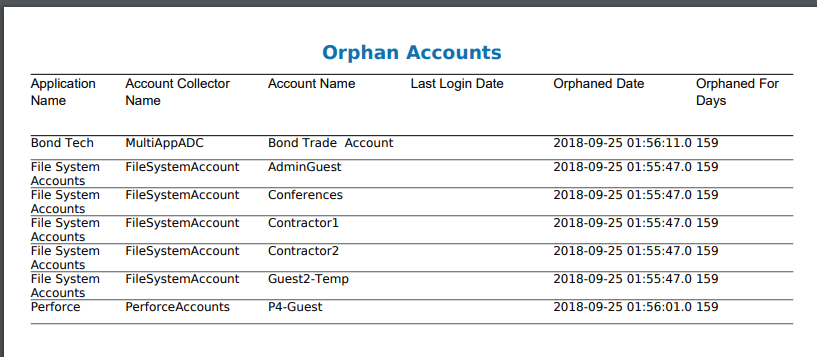

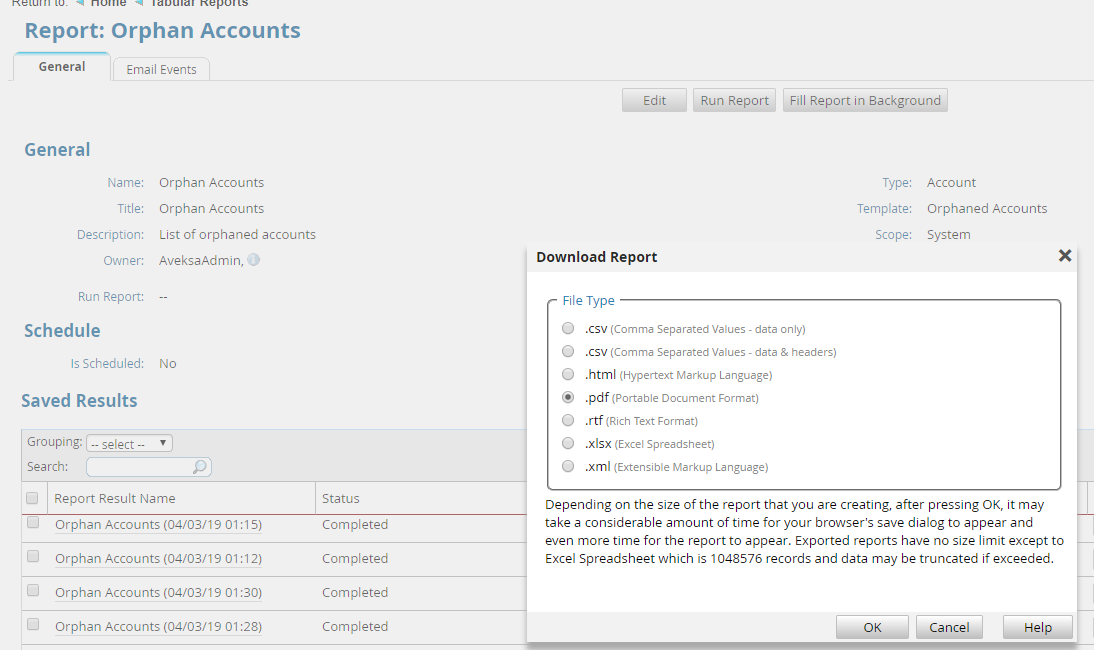

Run the report and click on Fill Report in Background. Then download the report in pdf format. Note the column headers are no longer blue as in the report preview.

User-added image




User-added image



Here is a another example using Fall Style. In this case note the column headers are no longer bolded.

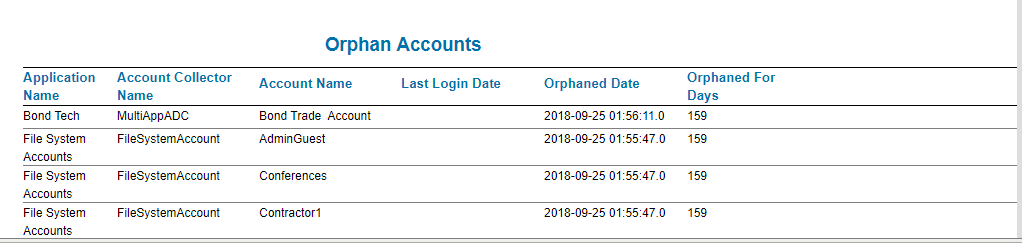

Preview

User-added image

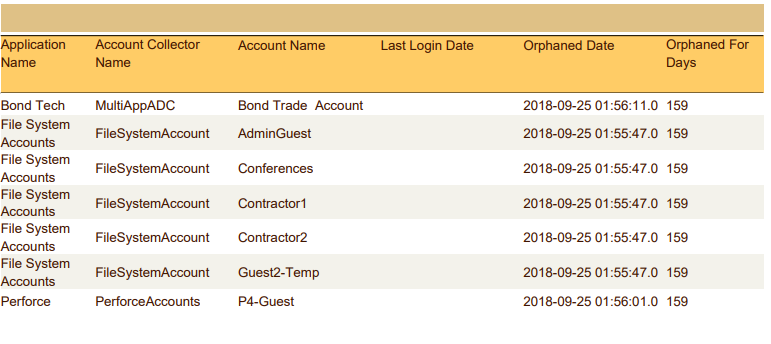

Report downloaded as a pdf:

User-added image

Cause
RSA Identity Governance & Lifecycle was using fonts which were no longer supported by Jasper out of the box .
Resolution
Upgrade to 7.1.0 P08 or 7.1.1 P02 to have this issue fixed.
